TPS54040DGQ Power Switch Ics Ic Reg Buck Adj 500ma 10msop 296-24228-5-Nd

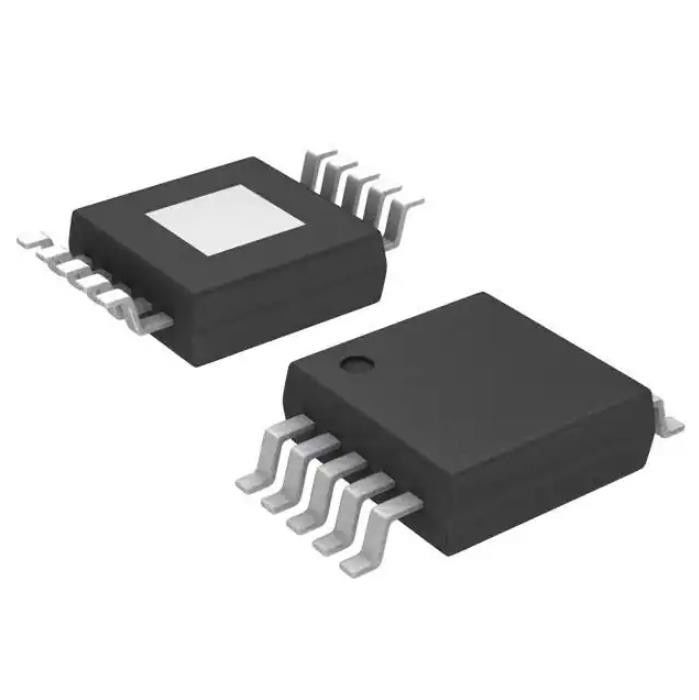

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 500mA 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Specifications of TPS54040DGQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Eco-Mode™ |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 39V |
| Current - Output | 500mA |
| Frequency - Switching | 100kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
| Base Product Number | TPS54040 |
Features of TPS54040DGQ
• 3.5-V to 42-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™
• 116-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• UV and OV Power Good Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• MSOP10 Package With PowerPAD™
• Supported by SwitcherPro™ Software Tool (http://focus.ti.com/docs/toolsw/folders/print/switch erpro.html)
Applications of TPS54040DGQ
• 12-V and 24-V Industrial and Commercial Low Power Systems
• Aftermarket Auto Accessories: Video, GPS, Entertainment
Environmental & Export Classifications of TPS54040DGQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
