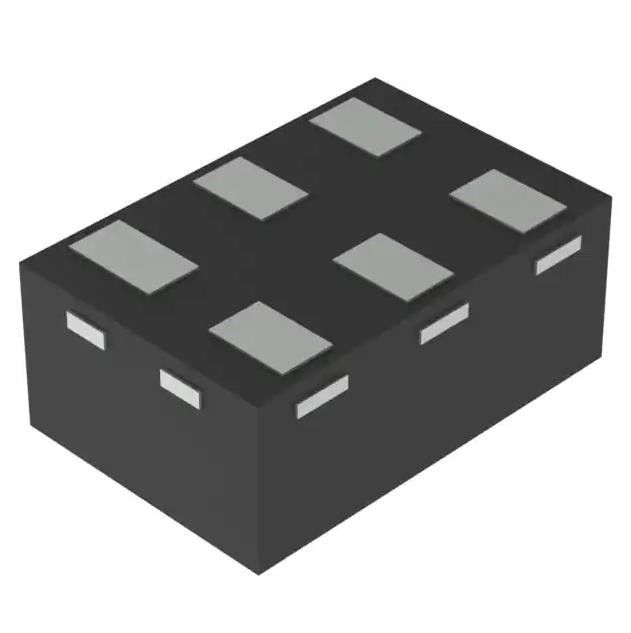

SN74LVC1G57DRYR Electronic IC Chips Configurable 1 Circuit 3 Input 6-SON (1.45x1)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G57DRYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Number Of Inputs: | 3 |
|---|---|---|---|
| Output Type: | Single-Ended | Current - Output High, Low: | 32mA, 32mA |
| Voltage - Supply: | 1.65V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
| Package / Case: | 6-UFDFN | Supplier Device Package: | 6-SON (1.45x1) |
Product Description
SN74LVC1G57DRYR Electronic IC Chips Configurable 1 Circuit 3 Input 6-SON (1.45x1)
IC CONFIG MULTI-FUNC GATE 6SON
Specifications of SN74LVC1G57DRYR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters - Multi-Function, Configurable | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Configurable Multiple Function |
| Number of Circuits | 1 |
| Number of Inputs | 3 |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) |
| Base Product Number | 74LVC1G57 |
Features of SN74LVC1G57DRYR
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
– Supports Down Translation to VCC
• Max tpd of 6.3 ns at 3.3 V
• Schmitt-Triggered Inputs
• Low Power Consumption, 10-µA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Available in the Texas Instruments NanoFree™ Package
Applications of SN74LVC1G57DRYR
• Active Noise Cancellation (ANC)
• Barcode Scanners
• Blood Pressure Monitors
• CPAP Machines
• Cable Solutions
• Embedded PCs
• Field Transmitter: Temperature or Pressure Sensors
• HVAC: Heating, Ventilating, and Air Conditioning
• TVs: High-Definition (HDTV), LCD, and Digital
• Video Communications Systems
Environmental & Export Classifications of SN74LVC1G57DRYR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
