ISO7761FDBQR Wireless Rf Module Dgtl Iso 3000vrms 6ch Gp 16ssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISO7761FDBQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Pulse Width Distortion (Max): | 4.9ns | Rise / Fall Time (Typ): | 1.1ns, 1.4ns |
|---|---|---|---|
| Voltage - Supply: | 2.25V ~ 5.5V | Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount | Package / Case: | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package: | 16-SSOP | Base Product Number: | ISO7761 |
Product Description

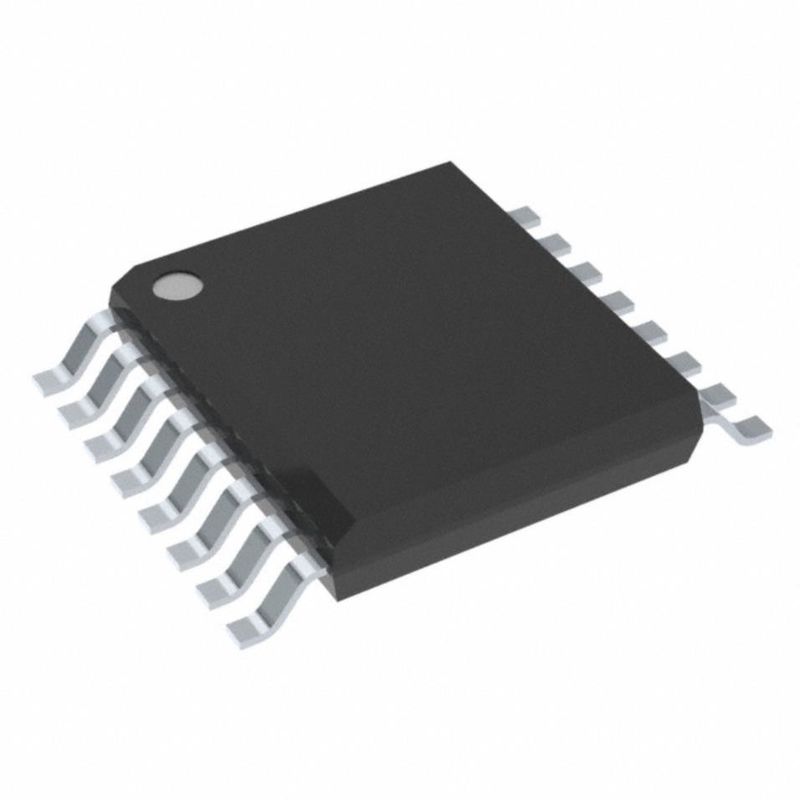

ISO7761FDBQR Wireless Rf Module Dgtl Iso 3000vrms 6ch Gp 16ssop
General Purpose Digital Isolator 3000Vrms 6 Channel 100Mbps 85kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
Specifications of ISO7761FDBQR
| TYPE | DESCRIPTION |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Texas Instruments |
| Series | ISO776x |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 5月1日 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 85kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.9ns |
| Rise / Fall Time (Typ) | 1.1ns, 1.4ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | ISO7761 |
Features of ISO7761FDBQR
• 100 Mbps data rate
• Robust isolation barrier:
– >100-Year projected lifetime
– Up to 5000 VRMS isolation rating
– Up to 12.8 kV surge capability
– ±100 kV/μs Typical CMTI
• Wide supply range: 2.25 V to 5.5 V
• 2.25-V to 5.5-V Level translation
• Default output high (ISO776x) and low (ISO776xF) Options
• Wide temperature range: –55°C to +125°C
• Low power consumption, typical 1.4 mA per channel at 1 Mbps
• Low propagation delay: 11 ns typical at 5 V
• Robust Electromagnetic Compatibility (EMC):
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 Contact discharge protection across isolation barrier
– Low emissions
• Wide-SOIC (DW-16) and SSOP (DBQ-16) package options
• Automotive version available: ISO776x-Q1
• Safety-related certifications:
– Reinforced insulation per DIN V VDE V 0884-11:2017-01
– UL 1577 component recognition program
– CSA Certification per IEC 60950-1, IEC 62368-1, and IEC 60601-1
– CQC Certification per GB4943.1-2011
– TUV Certification according to EN 60950-1 and EN 61010-1
Applications of ISO7761FDBQR
• Industrial automation
• Motor control
• Power supplies
• Solar inverters
• Medical equipment
Environmental & Export Classifications of ISO7761FDBQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Want to Know more details about this product
