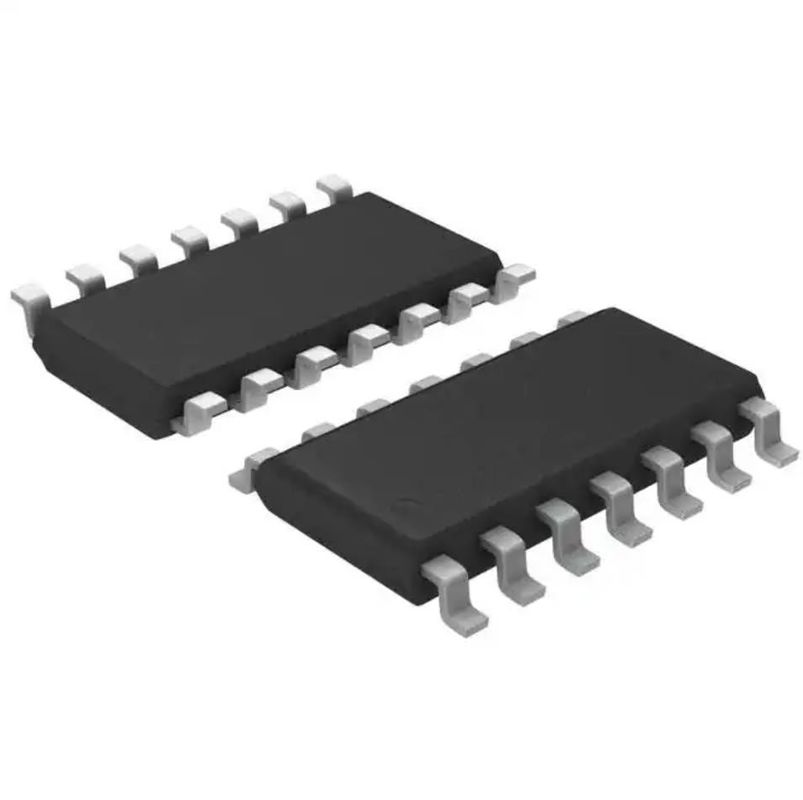

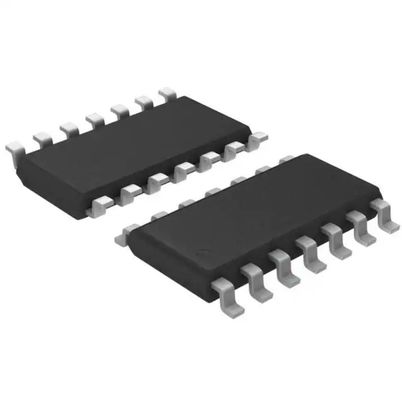

14SOIC ISL83080EIBZ-T IC Transceiver Wireless RF Module FULL 1/1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISL83080EIBZ-T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Receiver Hysteresis: | 20 MV | Data Rate: | 115Kbps |
|---|---|---|---|
| Voltage - Supply: | 4.5V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 14-SOIC | Base Product Number: | ISL83080 |
| High Light: | ISL83080EIBZ-T IC Transceiver,14SOIC ISL83080EIBZ-T,14SOIC IC Transceiver |
||
Product Description
Isl83080eibz-T Wireless Rf Module Ic Transceiver Full 1/1 14soic
1/1 Transceiver Full RS422, RS485 14-SOIC
Specifications of ISL83080EIBZ-T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1月1日 |
| Duplex | Full |
| Receiver Hysteresis | 20 mV |
| Data Rate | 115Kbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | ISL83080 |
Features of ISL83080EIBZ-T
• Pb-Free Available (RoHS Compliant)
• RS-485 I/O Pin ESD Protection . . . . . . . .. . ±15kV HBMClass 3 ESD Protection (HBM) on all Pins. . . . . . . >7kV
• Tiny MSOP Packages Save 50% Board Space
• Full Fail-Safe (Open, Short, Terminated andFloating)Receivers
• Hot Plug Circuitry (ISL83080E, ISL83082E,ISL83083E,ISL83085E)- Tx and Rx Outputs Remain Three-state DuringPower-up/Power-down
• True 1/8 Unit Load Allows up to 256 Deviceson the Bus
• Specified for Single 5V, 10% Tolerance,Supplies
• High Data Rates. . . . . . . . . . . . . . .. . . . . . up to 10Mbps
• Low Quiescent Supply Current . . . . . . . .. . . . . . . 530µAUltra Low Shutdown Supply Current . . . . . . .. . . . . 70nA
• -7V to +12V Common Mode Input Voltage Range
• Half and Full Duplex Pinouts
• Three-State Rx and Tx Outputs
• Current Limiting and Thermal Shutdown fordriver Overload Protection
Applications of ISL83080EIBZ-T
• Automated Utility Meter Reading Systems
• High Node Count Systems
• Factory Automation
• Field Bus Networks
• Security Camera Networks
• Building Environmental Control Systems
• Industrial/Process Control Networks
Environmental & Export Classifications of ISL83080EIBZ-T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
