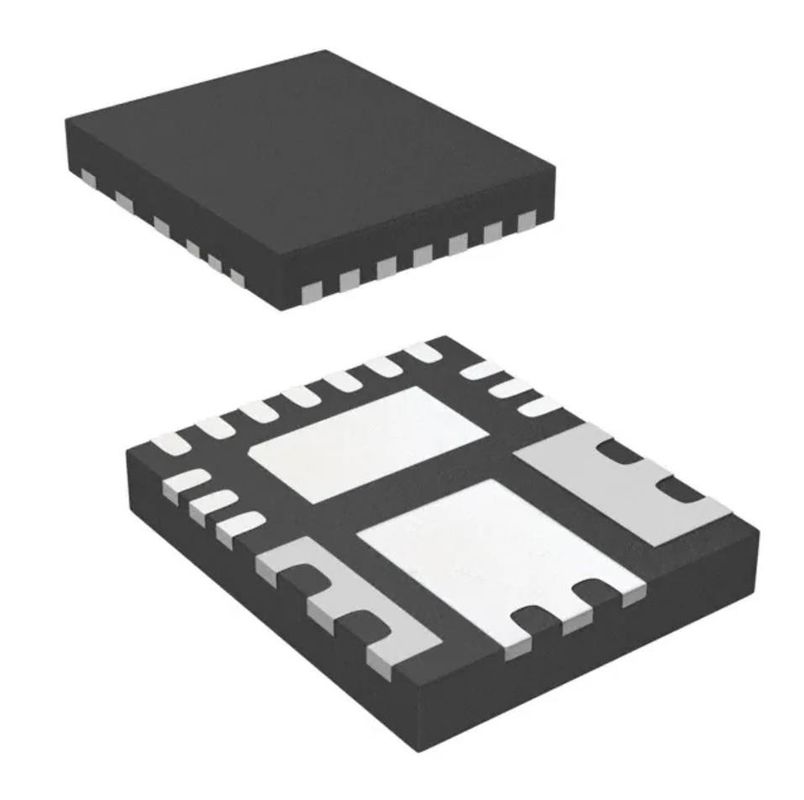

Ir3895mtrpbf Wireless Rf Module Ic Reg Buck Adj 16a 16pqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IR3895MTRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output: | 16A | Frequency - Switching: | 300kHz ~ 1.5MHz |
|---|---|---|---|
| Synchronous Rectifier: | Yes | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 16-PowerVQFN |
| Supplier Device Package: | 16-PowerQFN | Base Product Number: | IR3895 |
Product Description
Ir3895mtrpbf Wireless Rf Module Ic Reg Buck Adj 16a 16pqfn
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 16A 16-PowerVQFN
Specifications of IR3895MTRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Infineon Technologies |
| Series | SupIRBuck® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1V |
| Voltage - Input (Max) | 21V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 18.06V |
| Current - Output | 16A |
| Frequency - Switching | 300kHz ~ 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerVQFN |
| Supplier Device Package | 16-PowerQFN |
| Base Product Number | IR3895 |
Features of IR3895MTRPBF
Single 5V to 21V application
Wide Input Voltage Range from 1.0V to 21V with external Vcc
Output Voltage Range: 0.5V to 0.86×Vin
Enhanced Line/Load Regulation with Feed‐Forward
Programmable Switching Frequency up to 1.5MHz
Internal Digital Soft‐Start/Soft‐Stop
Enable input with Voltage Monitoring Capability
Thermally Compensated Current Limit with robust hiccup mode over current protection
Smart internal LDO to improve light load and full load efficiency
External Synchronization with Smooth Clocking
Enhanced Pre‐Bias Start‐Up
Precision Reference Voltage (0.5V+/‐0.5%) with margining capability
Vp for Tracking Applications (source/sink capability ±16A)
Integrated MOSFET drivers and Bootstrap Diode
Thermal Shut Down
Programmable Power Good Output with tracking capability
Monotonic Start‐Up
Operating temp: ‐40o C < Tj < 125o C
Small Size: 5mm x 6mm PQFN
Lead‐free, Halogen‐free and RoHS Compliant
Applications of IR3895MTRPBF
Netcom Applications
Embedded Telecom Systems
Server Applications
Storage Applications
Distributed Point of Load Power Architectures
Environmental & Export Classifications of IR3895MTRPBF
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
