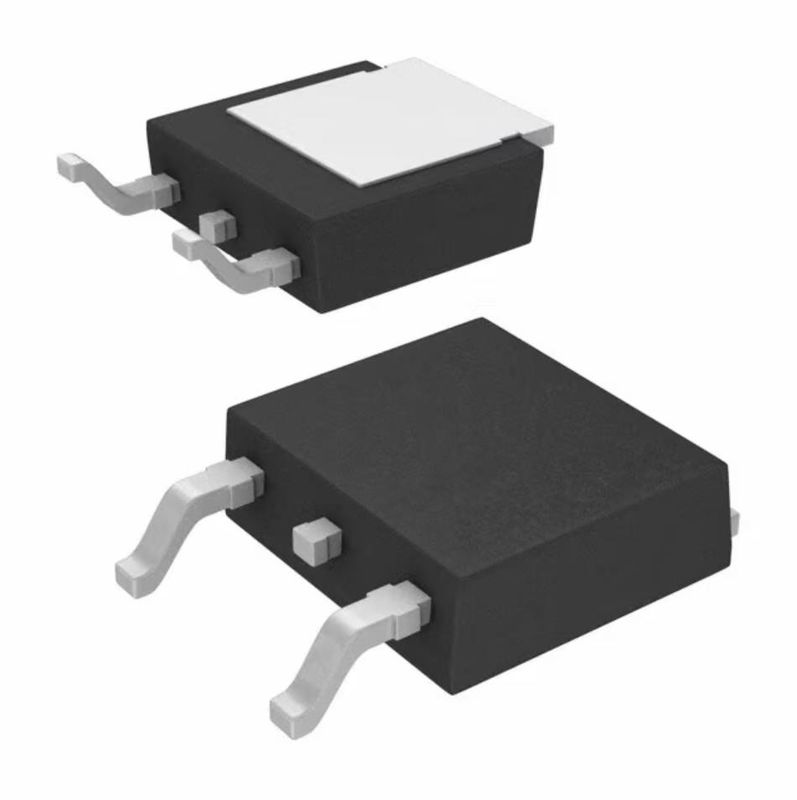

Ipd60r1k0ceauma1 Wireless Rf Module Mosfet N-Ch 100v 60a To252-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IPD60R1K0CEAUMA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Input Capacitance (Ciss) (Max) @ Vds: | 3170 PF @ 25 V | FET Feature: | - |
|---|---|---|---|
| Power Dissipation (Max): | 94W (Tc) | Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount | Supplier Device Package: | PG-TO252-3-313 |
| Package / Case: | TO-252-3, DPak (2 Leads + Tab), SC-63 | Base Product Number: | IPD60N10 |
Product Description
IPD60N10S4L-12 WIRELESS RF MODULE MOSFET N-CH 100V 60A TO252-3
N-Channel 100 V 60A (Tc) 94W (Tc) Surface Mount PG-TO252-3-313
Specifications of IPD60R1K0CEAUMA1
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | Automotive, AEC-Q101, HEXFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 46µA |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 3170 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 94W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3-313 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Base Product Number | IPD60N10 |
Features of IPD60R1K0CEAUMA1
• N-channel - Enhancement mode
• AEC qualified
• MSL1 up to 260°C peak reflow
• 175°C operating temperature
• Green Product (RoHS compliant)
• 100% Avalanche tested
Applications of IPD60R1K0CEAUMA1
For further information on technology, delivery terms and conditions and prices, please contact the nearest Infineon Technologies Office (www.
infineon.com).
Environmental & Export Classifications of IPD60R1K0CEAUMA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
