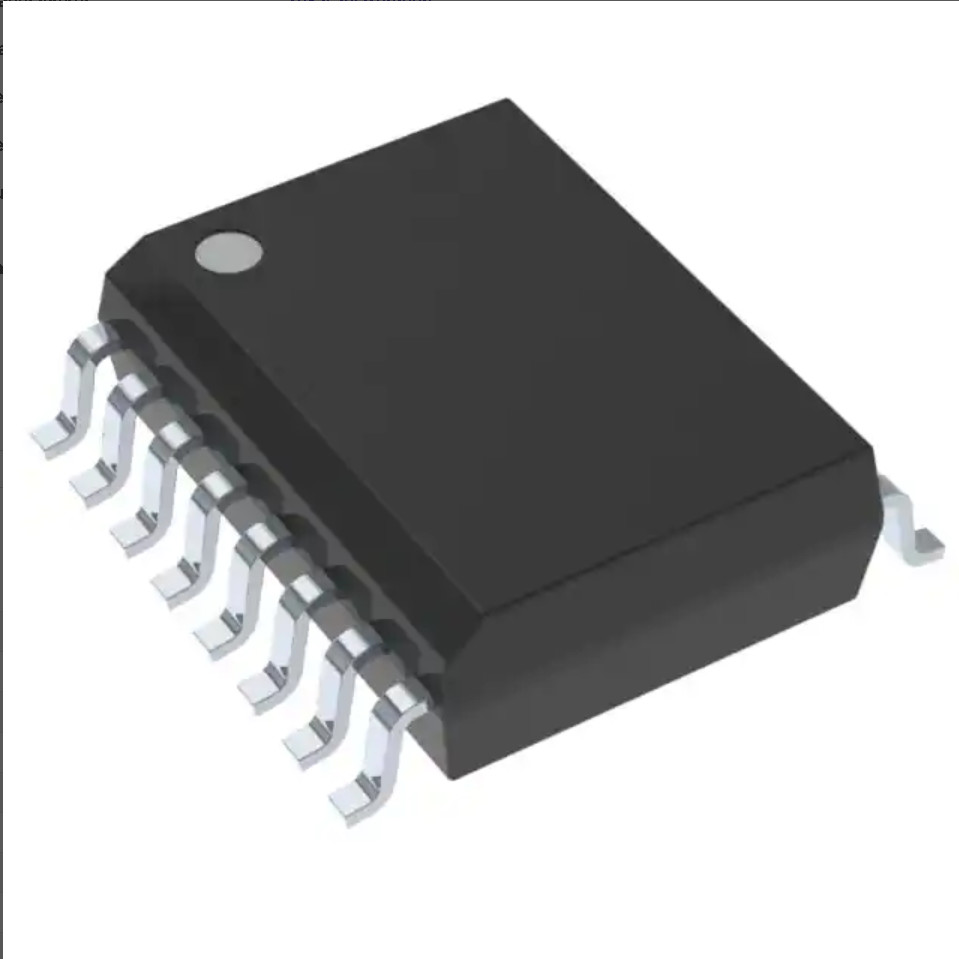

Ina163uae4 Wireless Rf Module Ic Inst Amp 1 Circuit 14soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | INA163UAE4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Output / Channel: | 60 MA | Voltage - Supply Span (Min): | 9 V |
|---|---|---|---|
| Voltage - Supply Span (Max): | 36 V | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 14-SOIC | Base Product Number: | INA163 |
Product Description
Ina163uae4 Wireless Rf Module Ic Inst Amp 1 Circuit 14soic
Instrumentation Amplifier 1 Circuit 14-SOIC
Specifications of INA163UAE4
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Discontinued at Digi-Key |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 15V/µs |
| -3db Bandwidth | 800 kHz |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 50 µV |
| Current - Supply | 10mA |
| Current - Output / Channel | 60 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | INA163 |
Features of INA163UAE4
● LOW NOISE: 1nV/√Hz at 1kHz
● LOW THD+N: 0.002% at 1kHz, G = 100
● WIDE BANDWIDTH: 800kHz at G = 100
● WIDE SUPPLY RANGE: ±4.5V to ±18V
● HIGH CMR: > 100dB
● GAIN SET WITH EXTERNAL RESISTOR
● SO-14 SURFACE-MOUNT PACKAGE
Applications of INA163UAE4
● PROFESSIONAL MICROPHONE PREAMPS
● MOVING-COIL TRANSDUCER AMPLIFIERS
● DIFFERENTIAL RECEIVERS
● BRIDGE TRANSDUCER AMPLIFIERS
Environmental & Export Classifications of INA163UAE4.
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
