SN55451BJG 500mA Low Side Gate Driver IC 8 CDIP Integrated Circuits
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN55451BJG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Drivers: | 2 | Voltage - Supply: | 4.5V ~ 5.5V |
|---|---|---|---|
| Logic Voltage - VIL, VIH: | 0.8V, 2V | Current - Peak Output (Source, Sink): | 500mA, 500mA |
| Rise / Fall Time (Typ): | 5ns, 7ns | Operating Temperature: | -50°C ~ 150°C (TJ) |
| Package / Case: | 8-CDIP (0.300", 7.62mm) | Driven Configuration: | Low-Side |
| High Light: | SN55451BJG,500mA Low Side Gate Driver IC,8 CDIP Low Side Gate Driver IC |
||
Product Description

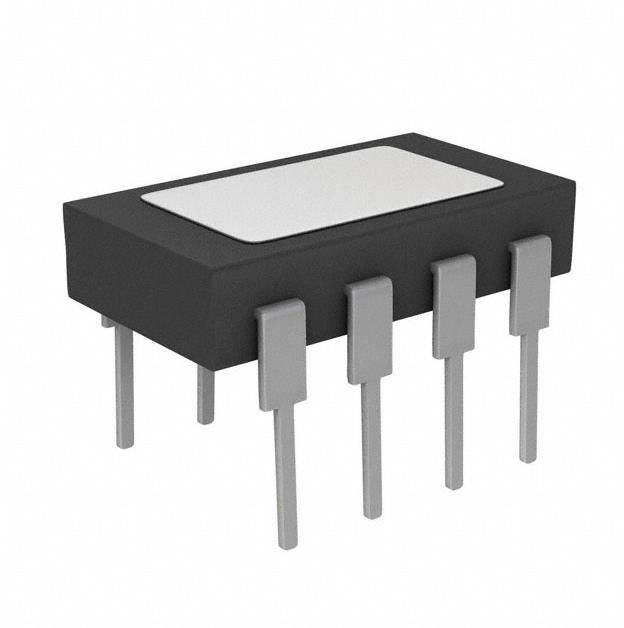

SN55451BJG Transistor Output Optocouplers IC GATE DRVR LOW-SIDE 8CDIP
Low-Side Gate Driver IC Inverting 8-CDIP
Specifications of SN55451BJG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 500mA, 500mA |
| Input Type | Inverting |
| Rise / Fall Time (Typ) | 5ns, 7ns |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CDIP |
| Base Product Number | SN55451 |
Features of SN55451BJG
• Characterized for Use to 300 mA
• High-Voltage Outputs up to 30 V
• No Output Latch-Up at 20 V (After Conducting 300 mA)
• High-Speed Switching
• Open-Collector Outputs
• Circuit Flexibility for Varied Applications
• TTL-Compatible Diode-Clamped Inputs
• Standard Supply Voltages
Applications of SN55451BJG
• High-Speed Logic Buffers
• Power Drivers
• Lamp Drivers
• LED Drivers
• Line Drivers
• Memory Drivers
Environmental & Export Classifications of SN55451BJG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
