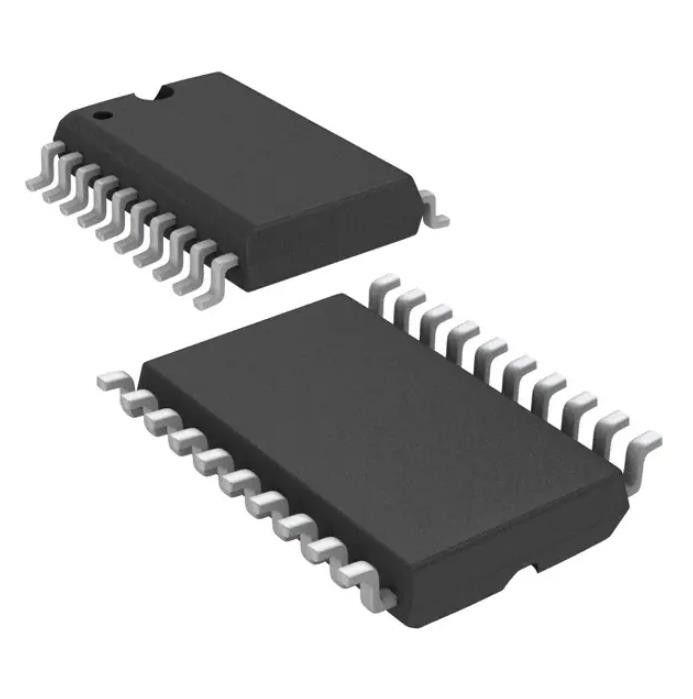

DRV8803DWR Electronic IC Chips IC MTR DRV UNIPLR 8.2V-60V 20SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV8803DWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | General Purpose | Current - Output: | 800mA |
|---|---|---|---|
| Voltage - Supply: | 8.2V ~ 60V | Voltage - Load: | 8.2V ~ 60V |
| Operating Temperature: | -40°C ~ 150°C (TJ) | Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) | Supplier Device Package: | 20-SOIC |
| High Light: | DRV8803DWR,IC MTR DRV UNIPLR 8.2V,IC MTR DRV UNIPLR 60V |
||
Product Description
DRV8803DWR Wireless Rf Module Ic Mtr Drv Uniplr 8.2-60v 20soic
Unipolar Motor Driver Power MOSFET Parallel 20-SOIC
Specifications of DRV8803DWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 800mA |
| Voltage - Supply | 8.2V ~ 60V |
| Voltage - Load | 8.2V ~ 60V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | DRV8803 |
Features of DRV8803DWR
• 4-Channel Protected Low-Side Driver
– Four NMOS FETs With Overcurrent Protection
– Integrated Inductive Clamp Diodes
– Parallel Interface
• DW Package: 1.5-A (Single Channel On) / 800-mA (Four Channels On) Maximum Drive Current per Channel (at 25°C)
• PWP Package: 2-A (Single Channel On) / 1-A (Four Channels On)
Maximum Drive Current per Channel (at 25°C, With Proper PCB Heatsinking)
• 8.2-V to 60-V Operating Supply Voltage Range
• Thermally Enhanced Surface Mount Package
Applications of DRV8803DWR
• Relay Drivers
• Unipolar Stepper Motor Drivers
• Solenoid Drivers
• General Low-Side Switch Applications
Environmental & Export Classifications of DRV8803DWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
