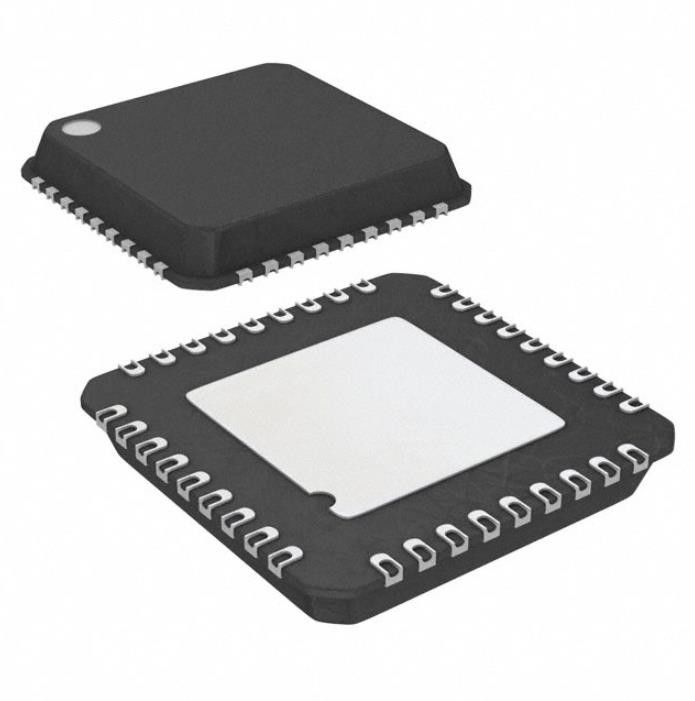

DP83TC811SWRNDRQ1 IC Transceiver Electronic IC Chips 36VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DP83TC811SWRNDRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Transceiver |
|---|---|---|---|
| Protocol: | IEEE 802.3 | Number Of Drivers/Receivers: | 2/2 |
| Data Rate: | 100Mbps | Voltage - Supply: | 1.62V ~ 3.63V |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount, Wettable Flank |
| High Light: | DP83TC811SWRNDRQ1,36VQFN Ic Transceiver,DP83TC811SWRNDRQ1 IC |
||
Product Description
DP83TC811SWRNDRQ1 Wireless Rf Module Ic Transceiver 2/2 36vqfn
2/2 Transceiver IEEE 802.3 36-VQFN (6x6)
Specifications of DP83TC811SWRNDRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | IEEE 802.3 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | - |
| Data Rate | 100Mbps |
| Voltage - Supply | 1.62V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-VQFN (6x6) |
| Base Product Number | DP83TC811 |
Features of DP83TC811SWRNDRQ1
• 100BASE-T1 – IEEE 802.3bw Compliant
– OPEN Alliance Qualified
– Interoperable With BroadR-Reach and 100BASE-T1 PHYs
• AEC-Q100 Qualified for Automotive Applications:
– Device Temperature Grade 1: –40°C to +125 °C Ambient Operating Temperature
– Device HBM ESD Classification Level 3A
– Device CDM ESD Classification Level C5 for All Pins Except Pin 5
– Device CDM ESD Classification Level C3 for Pin 5
– Device IEC61000-4-2 ESD Classification Level 4 for Pins 12 and 13: 8-kV Contact Discharge
• MAC Interfaces: MII, RMII, RGMII and SGMII
• VQFN, Wettable Flank Packaging
• IEEE 1588 SFD Support
• Low Transmit and Receive Latency for AVB/TSN
• Low Active Power Operation: 230 mW
• Configurable I/O Voltages: 3.3 V, 2.5 V, and 1.8 V
• Power Savings Features:
– Sleep, Standby and Disable
– Wake-on-LAN (WoL)
• Diagnostic Tool Kit
– Signal Quality Indication (SQI)
– Time Domain Reflectometry (TDR)
– Electrostatic Discharge Sensor
– Voltage Sensor
– Temperature Sensor
– PRBS Built-In Self-Test
Applications of DP83TC811SWRNDRQ1
• Backbone Networks
• Gateway and Body Control
• Telematics
Environmental & Export Classifications of DP83TC811SWRNDRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
