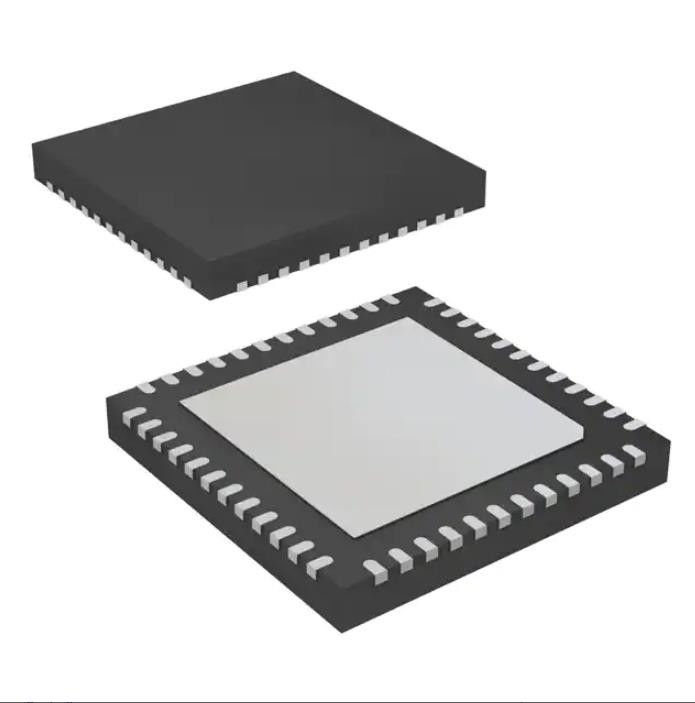

DP83867IRRGZR Wireless Rf Module Ic Ethernet Phy 48vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DP83867IRRGZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Protocol: | Ethernet | Function: | Physical Layer Controller |
| Interface: | Serial | Standards: | 10/100/1000 Base-TX PHY |
| Voltage - Supply: | 1.1V, 2.5V | Current - Supply: | 157mA |
Product Description
DP83867IRRGZR Wireless Rf Module Ic Ethernet Phy 48vqfn
Ethernet Physical Layer Controller 10/100/1000 Base-TX PHY Serial Interface 48-VQFN (7x7)
Specifications of DP83867IRRGZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Protocol | Ethernet |
| Function | Physical Layer Controller |
| Interface | Serial |
| Standards | 10/100/1000 Base-TX PHY |
| Voltage - Supply | 1.1V, 2.5V |
| Current - Supply | 157mA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | DP83867 |
Features of DP83867IRRGZR
• Ultra low RGMII latency TX < 90ns, RX < 290ns
• Time Sensitive Network (TSN) compliant
• Low power consumption 457 mW
• Exceeds 8000 V IEC 61000-4-2 ESD protection
• Meets EN55011 class B emission standards
• 16 programmable RGMII delay modes on RX/TX
• Integrated MDI termination resistors
• Programmable MII/GMII/RGMII termination impedance
• WoL (Wake-on-LAN) packet detection
• 25-MHz or 125-MHz synchronized clock output
• Start of Frame Detect for IEEE 1588 time stamp
• RJ45 mirror mode
• Fully compatible to IEEE 802.3 10BASE-Te, 100BASE-TX, and 1000BASE-T Specification
• Cable diagnostics
• MII, GMII and RGMII MAC interface options
• Configurable I/O voltage (3.3 V, 2.5 V, 1.8 V)
• Fast link drop mode
• JTAG support
Applications of DP83867IRRGZR
• Motor drives
• Industrial factory automation
• Field Bus Support
• Industrial embedded computing
• Wired and wireless communications infrastructure
• Test and measurement
• Consumer electronics
Environmental & Export Classifications of DP83867IRRGZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
