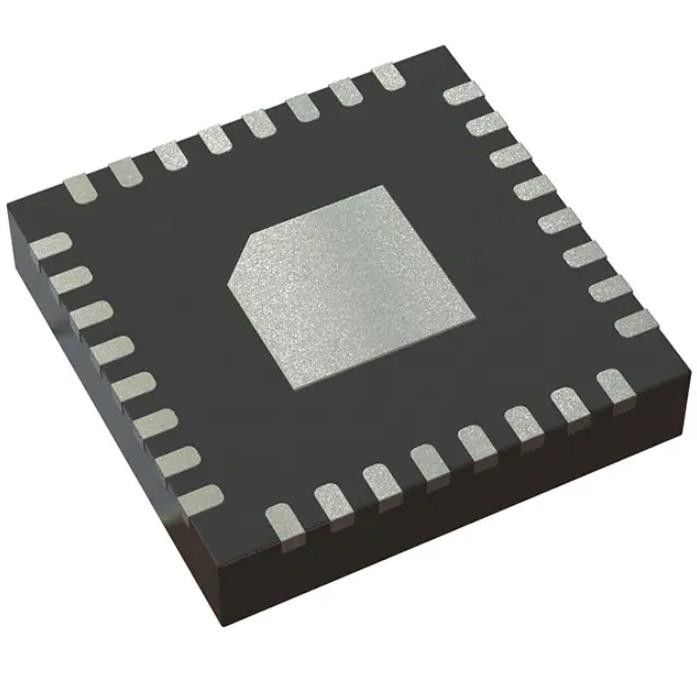

DP83822IRHBR Wireless Rf Module Ic Interface Specialized 32vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DP83822IRHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Applications: | Ethernet |
|---|---|---|---|
| Interface: | MII, RMII | Voltage - Supply: | 1.71V ~ 3.45V |
| Package / Case: | 32-VFQFN Exposed Pad | Supplier Device Package: | 32-VQFN (5x5) |
| Mounting Type: | Surface Mount | Base Product Number: | DP83822 |
Product Description
DP83822IRHBR Wireless Rf Module Ic Interface Specialized 32vqfn
Ethernet Interface 32-VQFN (5x5)
Specifications of DP83822IRHBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Applications | Ethernet |
| Interface | MII, RMII |
| Voltage - Supply | 1.71V ~ 3.45V |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | DP83822 |
Features of DP83822IRHBR
• Ultra-robust 10/100Mbs PHY
– IEC 6100-4-2 ESD: +/- 8KV contact discharge
– IEC 6100-4-4 EFT: Class A at 4KV
– CISPR 22 conducted emissions : Class B
– CISPR 22 radiated emissions : Class B
– Operating temperature: -40C to 125C
• MAC interfaces: RGMII / RMII / MII
• IEEE 802.3u compliant: 100BASE-FX, 100BASETX and 10BASE-Te
• Flexible supply options
– Low power single supply options
• 1.8V AVD < 120 mW
• 3.3-V AVD < 220 mW
– Available I/O voltages : 3.3V/2.5V/1.8V
• Power saving features
– Energy efficient Ethernet (EEE) IEEE 802.3az
– WoL (Wake-on-LAN) support with magic packet detection
– Programmable energy savings modes
• Start of frame detect for IEEE 1588 time stamp
• Diagnostic tools: Cable diagnostics, BIST (Built-in self-test), loopback, rapid link-down detection
• Auto-crossover in force modes
Applications of DP83822IRHBR
• Motor drives
• Factory automation, robotics and motion control
• Grid infrastructure
• Building automation
• Industrial Ethernet fieldbus
• Real Time Industrial Ethernet Applications such as ProfiNET®
Environmental & Export Classifications of DP83822IRHBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
