116mA DP83816AVNG NOPB IC Media Access CTRLR 144LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DP83816AVNG/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tray | Product Status: | Not For New Designs |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Protocol: | Ethernet |
| Function: | Controller | Interface: | PCI |
| Standards: | IEEE 802.3, 10/100 Base-T/TX PHY | Voltage - Supply: | 3V ~ 3.6V |
| High Light: | DP83816AVNG NOPB IC,IC Media Access CTRLR 144LQFP,116mA DP83816AVNG |
||
Product Description

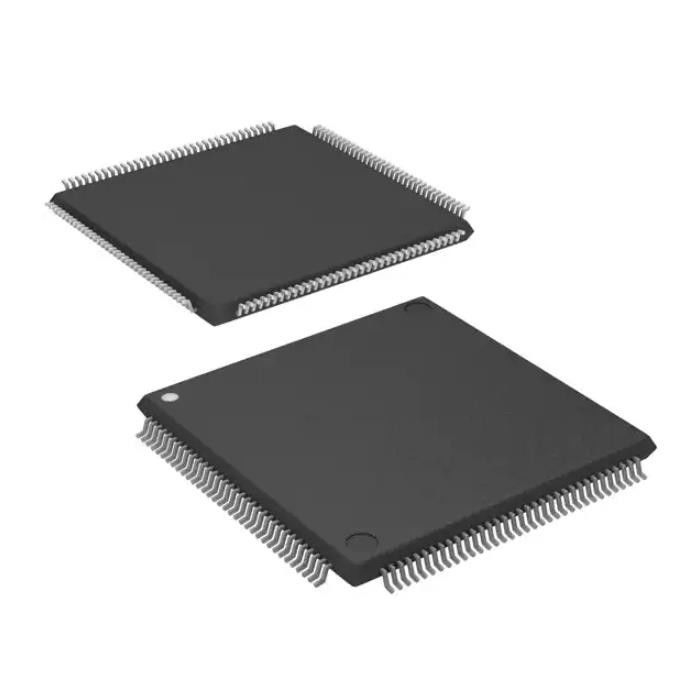

DP83816AVNG/NOPB Wireless Rf Module Ic Media Access Ctrlr 144-Lqfp
Ethernet Controller IEEE 802.3, 10/100 Base-T/TX PHY PCI Interface 144-LQFP (20x20)
Specifications of DP83816AVNG/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tray |
| Product Status | Not For New Designs |
| Digi-Key Programmable | Not Verified |
| Protocol | Ethernet |
| Function | Controller |
| Interface | PCI |
| Standards | IEEE 802.3, 10/100 Base-T/TX PHY |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 116mA |
| Operating Temperature | 0°C ~ 85°C |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
| Base Product Number | DP83816 |
Features of DP83816AVNG/NOPB
• IEEE 802.3 Compliant, PCI V2.2 Media Access Controller (MAC) and Bus Interface Unit (BIU) Supports Traditional Data Rates of 10 Mb/s Ethernet and 100 Mb/s Fast Ethernet (Through Internal PHY)
• Bus Master – Burst Sizes of up to 128 Dwords (512 Bytes)
• BIU Compliant With PC 97 and PC 98 Hardware Design Guides, PC 99 Hardware Design Guide Draft, ACPI v1.0, PCI Power Management Specification v1.1, OnNow Device Class Power Management Reference Specification – Network Device Class v1.0a
• Wake on LAN (WoL) Support Compliant With PC98, PC99, SecureOn, and OnNow, Including Directed Packets, Magic Packet™ VLAN Packets, ARP Packets, Pattern Match Packets, and PHY Status Change
• Clkrun Function for PCI Mobile Design Guide
• Virtual LAN (VLAN) and Long Frame Support
• Support for IEEE 802.3× Full-Duplex Flow Control
• Extremely Flexible Rx Packet Filtration Including: Single Address Perfect Filter With MSb Masking, Broadcast, 512 Entry Multicast and Unicast Hash Table, Deep Packet Pattern Matching for up to Four Unique Patterns
• Statistics Gathered for Support of RFC 1213 (MIB II), RFC 1398 (Ether-Like MIB), IEEE 802.3 LME, Reducing CPU Overhead for Management
• Internal 2KB Transmit and 2KB Receive Data FIFOs
• Serial EEPROM Port With Auto-Load of Configuration Data From EEPROM at Power On
• Flash or PROM Interface for Remote Boot Support
• Fully Integrated IEEE 802.3 3.3-V CMOS Physical Layer
• IEEE 802.3 10BASE-T Transceiver With Integrated Filters IEEE 802.3u 100BASE-TX Transceiver
• Fully integrated ANSI X3.263 Compliant TP-PMD Physical Sublayer With Adaptive Equalization and Baseline Wander Compensation
• IEEE 802.3u Auto-Negotiation – Advertised Features Configurable Through EEPROM
• Full-Duplex Support for 10- and 100-Mb/s Data Rates
• Single 25-MHz Reference Clock
• 144-pin LQFP Package
• Low-Power 3.3-V CMOS Design With Typical Consumption of 383 mW Operating, 297 mW During WoL, and 53 mW During Sleep Mode
• IEEE 802.3u MII for Connecting Alternative External Physical Layer Devices
• 3.3-V Signaling With 5-V Tolerant I/O
Applications of DP83816AVNG/NOPB
• PC Motherboards
• Embedded Systems
• PCI Network Interface Cards
Environmental & Export Classifications of DP83816AVNG/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.31.0001 |
