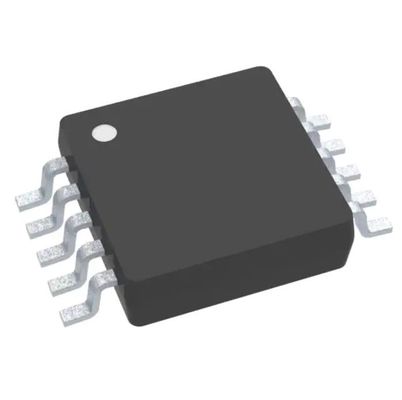

DAC8162TDGSR Wireless Rf Module Ic Dac 14bit V-Out 10vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC8162TDGSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 14 | Number Of D/A Converters: | 2 |
| Settling Time: | 10µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI, DSP |
Product Description
DAC8162TDGSR Wireless Rf Module Ic Dac 14bit V-Out 10vssop
14 Bit Digital to Analog Converter 2 10-VSSOP
Specifications of DAC8162TDGSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 14 |
| Number of D/A Converters | 2 |
| Settling Time | 10µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±0.1 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | DAC8162 |
Features of DAC8162TDGSR
• Relative Accuracy: 4 LSB INL at 16 Bits
• Low Glitch Impulse: 0.1 nV-s
• Bidirectional Reference Pin: Input or 2.5-V Output
– 4-ppm/°C Temperature Drift (Typ)
• Power-On Reset to Zero Scale or Mid-Scale
• Low-Power: 4 mW at 5-V AVDD
• Wide Power-Supply Range: 2.7 V to 5.5 V
• 50-MHz SPI With Schmitt-Triggered Inputs
• LDAC and CLR Functions
• Output Buffer With Rail-to-Rail Operation
• Pin-to-Pin Compatible With DAC8562 Family
• 5-V TTL I/O Enabled
• Packages: WSON-10 (3 mm × 3 mm), VSSOP-10
• Temperature Rang
Applications of DAC8162TDGSR
• Portable Instrumentation
• PLC Analog Output Module
• Bipolar Outputs (Section 9.2.2)
• Closed-Loop Servo Control
• Voltage Controlled Oscillator Tuning
• Data Acquisition Systems
• Programmable Gain and Offset Adjustment
Environmental & Export Classifications of DAC8162TDGSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
