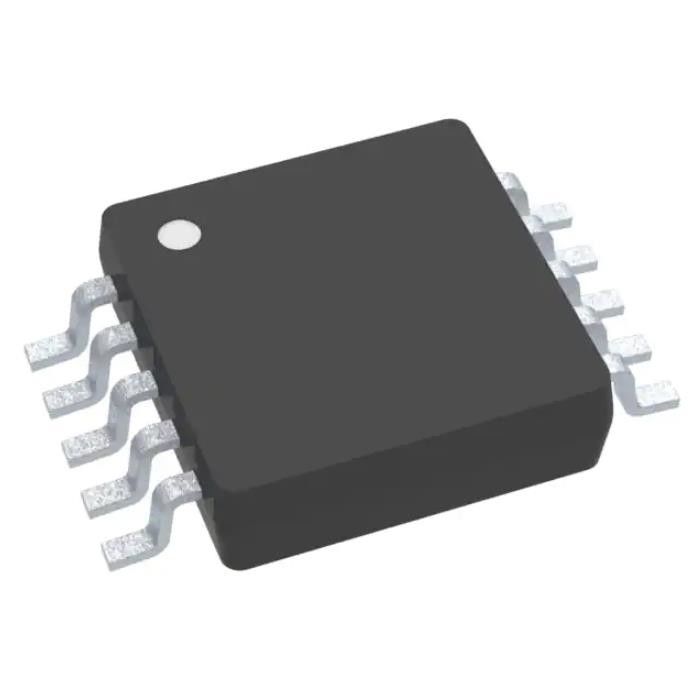

DAC8162SQDGSRQ1 Wireless Rf Module Ic Dac 14bit V-Out 10vssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC8162SQDGSRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Number Of Bits: | 14 | Number Of D/A Converters: | 2 |
| Settling Time: | 10µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | SPI, DSP |
Product Description
DAC8162SQDGSRQ1 Wireless Rf Module Ic Dac 14bit V-Out 10vssop
14 Bit Digital to Analog Converter 2 10-VSSOP
Specifications of DAC8162SQDGSRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 14 |
| Number of D/A Converters | 2 |
| Settling Time | 10µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±0.1 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | DAC8162 |
Features of DAC8162SQDGSRQ1
• 2.7-V to 5.5-V Single Supply
• 12-Bit Linearity and Monotonicity
• Rail-to-Rail Voltage Output
• Settling Time: 5 µs (Max)
• Ultralow Glitch Energy: 0.1 nVs
• Ultralow Crosstalk: –100 dB
• Low Power: 440 µA (Max)
• Per-Channel Power Down: 2 µA (Max)
• Power-On Reset to Zero Scale
• SPI-Compatible Serial Interface: Up to 50 MHz
• Daisy-Chain Capability
• Asynchronous Hardware Clear
• Simultaneous or Sequential Update
• Specified Temperature Range: –40°C to 105°C
• Small 3-mm × 3-mm, 16-Lead QFN Package
Applications of DAC8162SQDGSRQ1
• Portable Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Programmable Attenuators
• Industrial Process Control
Environmental & Export Classifications of DAC8162SQDGSRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
