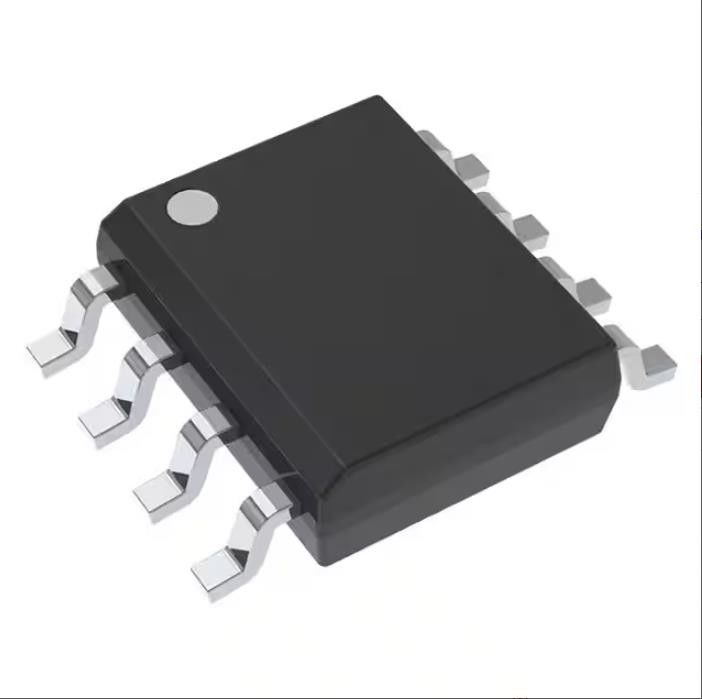

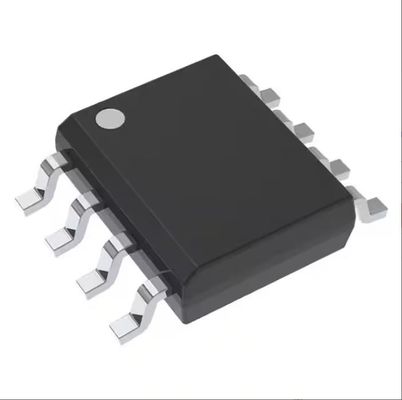

DAC8043U Electronic IC Chips 12 Bit Dac IC A Out 8Soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DAC8043U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Number Of Bits: | 12 |
| Number Of D/A Converters: | 1 | Settling Time: | 1µs |
| Output Type: | Current - Unbuffered | Differential Output: | No |
| High Light: | DAC8043U Electronic IC Chips,12 Bit Dac IC A Out 8soic,DAC8043U 12 Bit Dac IC |
||
Product Description
DAC8043U Wireless Rf Module Ic Dac 12bit A-Out 8soic
12 Bit Digital to Analog Converter 1 8-SOIC
Specifications of DAC8043U
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | Multiplying DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | DAC8043 |
Features of DAC8043U
● 12-BIT ACCURACY IN 8-PIN SOIC
● FAST 3-WIRE SERIAL INTERFACE
● LOW INL AND DNL: ±1/2 LSB max
● GAIN ACCURACY TO ±1LSB max
● LOW GAIN TEMPCO: 5ppm/°C max
● OPERATES WITH +5V SUPPLY
● TTL/CMOS COMPATIBLE
● ESD PROTECTED
Applications of DAC8043U
● AUTOMATIC CALIBRATION
● MOTION CONTROL
● MICROPROCESSOR CONTROL SYSTEMS
● PROGRAMMABLE AMPLIFIER/ ATTENUATORS
● DIGITALLY CONTROLLED FILTERS
Environmental & Export Classifications of DAC8043U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
