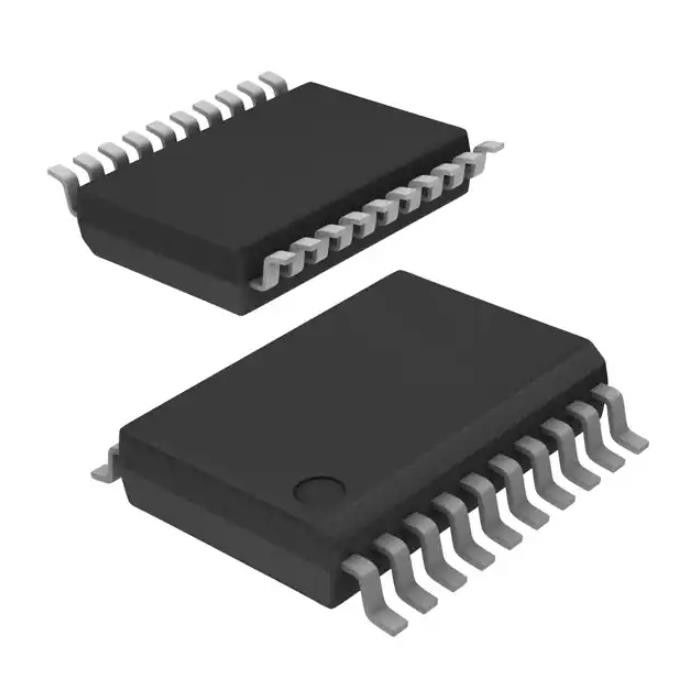

CY8C24223A-24PVXIT Wireless Rf Module Ic Mcu 8bit 4kb Flash 20ssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CY8C24223A-24PVXIT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RAM Size: | 256 X 8 | Voltage - Supply (Vcc/Vdd): | 2.4V ~ 5.25V |
|---|---|---|---|
| Data Converters: | A/D 8x14b; D/A 2x9b | Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 20-SSOP (0.209", 5.30mm Width) | Supplier Device Package: | 20-SSOP |
Product Description
CY8C24223A-24PVXIT Wireless Rf Module Ic Mcu 8bit 4kb Flash 20ssop
M8C PSOC®1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 4KB (4K x 8) FLASH 20-SSOP
Specifications of CY8C24223A-24PVXIT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Infineon Technologies |
| Series | PSOC®1 CY8C24xxx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.25V |
| Data Converters | A/D 8x14b; D/A 2x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Base Product Number | CY8C24223 |
Features of CY8C24223A-24PVXIT
■ Powerful Harvard-architecture processor
❐ M8C processor speeds up to 24 MHz
❐ 8 × 8 multiply, 32-bit accumulate
❐ Low power at high speed
❐ Operating voltage: 2.4 V to 5.25 V
❐ Operating voltages down to 1.0 V using on-chip switch mode pump (SMP)
❐ Industrial temperature range: –40 °C to +85 °C
■ Advanced peripherals (PSoC® blocks)
❐ Six rail-to-rail analog PSoC blocks provide:
• Up to 14-bit analog-to-digital converters (ADCs)
• Up to 9-bit digital-to-analog converters (DACs)
• Programmable gain amplifiers (PGAs)
• Programmable filters and comparators
❐ Four digital PSoC blocks provide:
• 8- to 32-bit timers and counters, 8- and 16-bit pulse-width modulators (PWMs)
• Cyclical redundancy check (CRC) and pseudo random sequence (PRS) modules
• Full-duplex universal asynchronous receiver transmitter (UART)
• Multiple serial peripheral interface (SPI) masters or slaves
• Can connect to all general-purpose I/O (GPIO) pins
❐ Complex peripherals by combining blocks
■ Precision, programmable clocking
❐ Internal ±5% 24- / 48-MHz main oscillator
❐ High accuracy 24 MHz with optional 32 kHz crystal and phase-locked loop (PLL)
❐ Optional external oscillator up to 24 MHz
❐ Internal oscillator for watchdog and sleep
■ Flexible on-chip memory
❐ 4 KB flash program storage 50,000 erase/write cycles
❐ 256-bytes SRAM data storage
❐ In-system serial programming (ISSP)
❐ Partial flash updates
❐ Flexible protection modes
❐ Electronically erasable programmable read only memory (EEPROM) emulation in flash
■ Programmable pin configurations
❐ 25-mA sink, 10-mA source on all GPIOs
❐ Pull-up, pull-down, high Z, strong, or open-drain drive modes on all GPIOs
❐ Eight standard analog inputs on all GPIOs, and four additional analog inputs with restricted routing
❐ Two 30 mA analog outputs on all GPIOs
❐ Configurable interrupt on all GPIOs
■ New CY8C24x23A PSoC device
❐ Derived from the CY8C24x23 device
❐ Low power and low voltage (2.4 V)
■ Additional system resources
❐ I 2C slave, master, and multi-master to 400 kHz
❐ Watchdog and sleep timers
❐ User-configurable low-voltage detection (LVD)
❐ Integrated supervisory circuit
❐ On-chip precision voltage reference
■ Complete development tools
❐ Free development software (PSoC Designer™)
❐ Full-featured, in-circuit emulator (ICE), and programmer
❐ Full-speed emulation
❐ Complex breakpoint structure
❐ 128 KB trace memory
Applications of CY8C24223A-24PVXIT
❐ Visit the PSoC 1 Code Examples web page for a comprehensivelist of code examples
❐ Cypress offers a large number of PSoC application notes covering a broad range of topics, from basic to advanced level. Recommended application notes for getting started with PSoC 1 are:
• AN75320: Getting Started with PSoC® 1
• AN2094: PSoC® 1 - Getting Started with GPIO
• AN2015: PSoC® 1 - Getting Started with Flash & E2PROM
• AN2014: Basics of PSoC® 1 Programming
• AN32200: PSoC® 1 - Clocks and Global Resources
• AN2010: PSoC® 1 Best Practices and Recommendations
Environmental & Export Classifications of CY8C24223A-24PVXIT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
