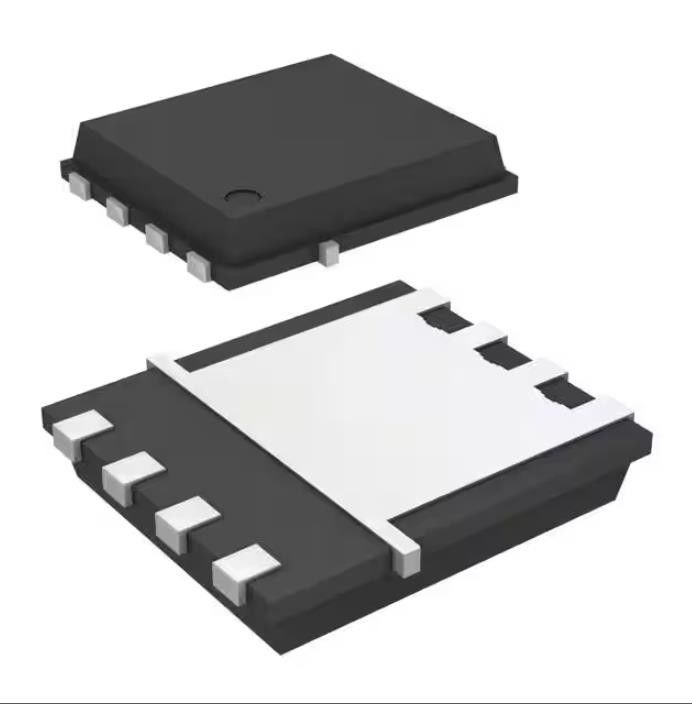

BSC900N20NS3GATMA1 Wireless Rf Module Mosfet N-Ch 200v 15.2a Tdson-8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BSC900N20NS3GATMA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | FET Type: | N-Channelxer |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 200 V |
| Current - Continuous Drain (Id) @ 25°C: | 15.2A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 90mOhm @ 7.6A, 10V | Vgs(th) (Max) @ Id: | 4V @ 30µA |
Product Description
BSC900N20NS3GATMA1 Wireless Rf Module Mosfet N-Ch 200v 15.2a Tdson-8
N-Channel 200 V 15.2A (Tc) 62.5W (Tc) Surface Mount PG-TDSON-8-5
Specifications of BSC900N20NS3GATMA1
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | OptiMOS™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 15.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 7.6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 30µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.6 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 62.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-5 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC900 |
Features of BSC900N20NS3GATMA1
• Optimized for dc-dc conversion
• N-channel, normal level
• Excellent gate charge x R DS(on) product (FOM)
• Low on-resistance R DS(on)
• 150 °C operating temperature
• Pb-free lead plating; RoHS compliant
• Qualified according to JEDEC1) for target application
• Halogen-free according to IEC61249-2-21
Information of BSC900N20NS3GATMA1
For further information on technology, delivery terms and conditions and prices, please contact the nearest Infineon Technologies Office (www.infineon.com).
Environmental & Export Classifications of BSC900N20NS3GATMA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
