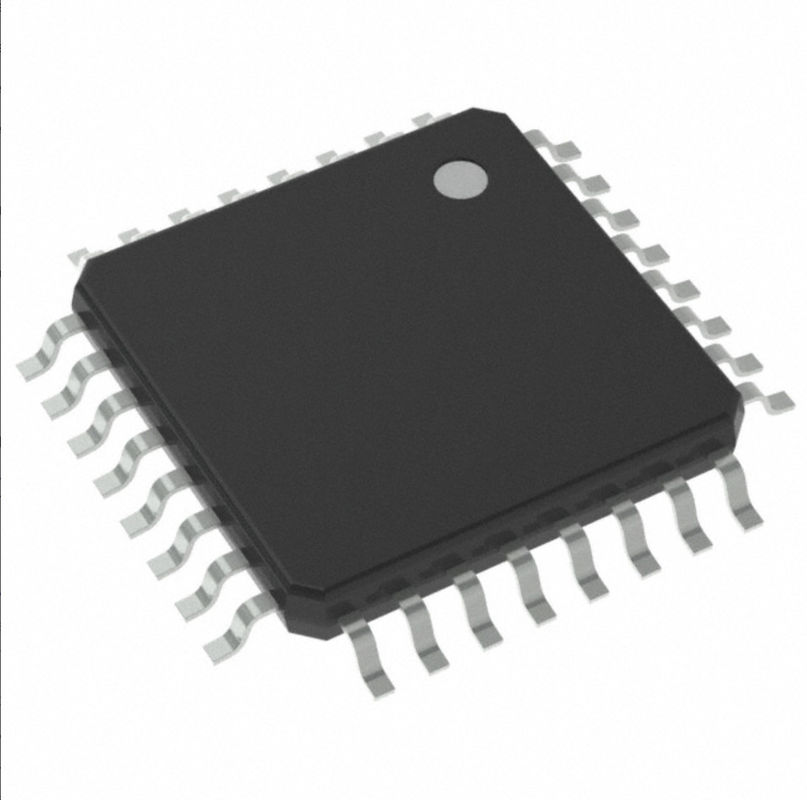

Atmega88pa-15az Integrated Circuit IC Chip Mcu 8bit 8kb Flash 32tqfp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATMEGA88PA-15AZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Vcc/Vdd): | 1.8V ~ 5.5V | Data Converters: | A/D 8x10b |
|---|---|---|---|
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 32-TQFP |
| Supplier Device Package: | 32-TQFP (7x7) | Base Product Number: | ATMEGA88 |
Product Description
Atmega88pa-15az Integrated Circuit IC Chip Mcu 8bit 8kb Flash 32tqfp
AVR Automotive, AEC-Q100, AVR® ATmega Microcontroller IC 8-Bit 16MHz 8KB (4K x 16) FLASH 32-TQFP (7x7)
Specifications of Atmega88pa-15az
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | Automotive, AEC-Q100, AVR® ATmega |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 8KB (4K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-TQFP |
| Supplier Device Package | 32-TQFP (7x7) |
| Base Product Number | ATMEGA88 |
Features of Atmega88pa-15az
● High performance, low power AVR® 8-Bit microcontroller
● Advanced RISC architecture
● 131 powerful instructions – most single clock cycle execution
● 32 8 general purpose working registers
● Fully static operation
● Up to 16MIPS throughput at 16MHz
● On-chip 2-cycle multiplier
● High endurance non-volatile memory segments
● 4/8/16K bytes of in-system self-programmable flash program memory
● 256/512/512 bytes EEPROM
● 512/1K/1K bytes internal SRAM
● Write/erase cycles: 10,000 flash/100,000 EEPROM
● Optional boot code section with independent lock bits
● In-system programming by on-chip boot program
● True read-while-write operation
● Programming lock for software security
● Peripheral features
● Two 8-bit Timer/Counters with separate prescaler and compare mode
● One 16-bit Timer/Counter with separate prescaler, compare mode, and capture mode
● Real time counter with separate oscillator
● Six PWM channels
● 8-channel 10-bit ADC
● Temperature measurement
● Programmable serial USART
● Master/slave SPI serial interface
● Byte-oriented 2-wire serial interface (philips I2 C compatible)
● Programmable watchdog timer with separate on-chip oscillator
● On-chip analog comparator
● Interrupt and wake-up on pin change
● Special microcontroller features
● Power-on reset and programmable brown-out detection
● Internal calibrated oscillator
● External and internal interrupt sources
● Six sleep modes: Idle, ADC noise reduction, power-save, power-down, standby, and extended stand by ATmega48PA/ATmega88PA/ATmega168PA 8-bit AVR Microcontroller with 4/8/16K8/16Kbytes In-system
DATASHEET ATmega48PA/88PA/168PA [DATASHEET] 9223F–AVR–04/14 2
● I/O and packages
● 23 programmable I/O lines
● 32-lead TQFP, and 32-pad QFN
● Operating voltage:
● 2.7V to 5.5V
● Temperature range:
● –40°C to +125°C
● Speed grade:
● 0 to 8MHz at 2.7V to 5.5V, 0 to 16MHz at 4.5V to 5.5V
● Power consumption
● Active mode: 1.4mA at 4MHz 3V 25°C
● Power-down mode: 0.8µA
Applications of R5f104mkgfb#50
Port B (PB7:0) XTAL1/XTAL2/TOSC1/TOSC2
Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, port B pins that are externally pulled low will source current if the pull-up resistors are activated. The port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.
Depending on the clock selection fuse settings, PB6 can be used as input to the inverting oscillator amplifier and input to the
internal clock operating circuit.
Depending on the clock selection fuse settings, PB7 can be used as output from the inverting oscillator amplifier.
If the internal Calibrated RC oscillator is used as chip clock source, PB7...6 is used as TOSC2...1 input for the asynchronous
Timer/Counter2 if the AS2 bit in ASSR is set.
The various special features of port B are elaborated in Section 14.3.1 “Alternate Functions of Port B” on page 71 and Section 9. “System Clock and Clock Options” on page 24.
Environmental & Export Classifications of R5f104mkgfb#50.
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
