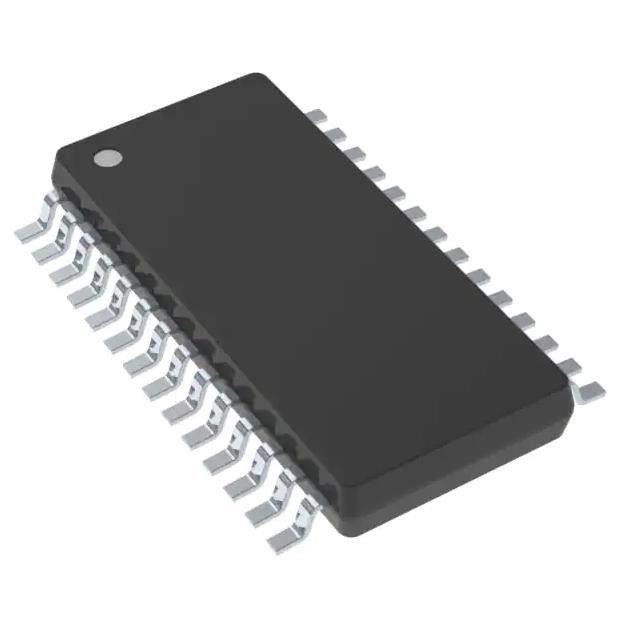

CS4360-DZZR Wireless RF Module Dac/Audio 24bit 200k 28tssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CS4360-DZZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Tape & Reel (TR) | Type: | DAC, Audio |
|---|---|---|---|
| Number Of Channels: | 6 | Differential - Input:Output: | 24 B |
| Input: | 200k | Output: | I²S |
| Frequency - Max: | Analog And Digital | ||
Product Description
CS4360-DZZR Wireless RF Module Dac/Audio 24bit 200k 28tssop
DAC, Audio 24 b 200k I²S 28-TSSOP
Specifications of CS4360-DZZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Cirrus Logic Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | DAC, Audio |
| Number of Channels | 6 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | I²S |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | CS4360 |
Features of CS4360-DZZR
●24-bit Conversion
●102 dB Dynamic Range
●-91 dB THD+N
●Low Clock Jitter Sensitivity
●Digital Volume Control with Soft Ramp -119 dB Attenuation -1-dB Step Size-Zero Crossing Click-Free Transitions
●ATAPI Mixing
●Logic Levels Between 5.0 V and 1.8 V
●+3.3 V or +5 V Analog Power Supply
● 116 mW with 3.3 V Supply
●Popguard Technology⑧for Control of Clicks and Pops
Applications of CS4360-DZZR
The CS4360 is a complete 6-channel digital-to-analogsystem including digital interpolation, fourth-order delta-sigma digital-to-analog conversion, digital de-emphasis.volume control, channel mixing and analog filtering. Theadvantages of this architecture include: ideal differentiallinearity, no distortion mechanisms due to resistormatching errors, no linearity drift over time and tempera-ture, and a high tolerance to clock jitter.
The CS4360 accepts data at audio sample rates from4 kHz to 200 kHz, consumes very little power, and oper-ates over a wide power supply range. These features areideal for cost-sensitive, multi-channel audio systems in-cluding DVD players,A/V receivers, set-top boxes.digital TVs and VCRs, mini-component systems, andmixing consoles.
The CS4360 accepts data at audio sample rates from4 kHz to 200 kHz, consumes very little power, and oper-ates over a wide power supply range. These features areideal for cost-sensitive, multi-channel audio systems in-cluding DVD players,A/V receivers, set-top boxes.digital TVs and VCRs, mini-component systems, andmixing consoles.
Environmental & Export Classifications of CS4360-DZZR
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
