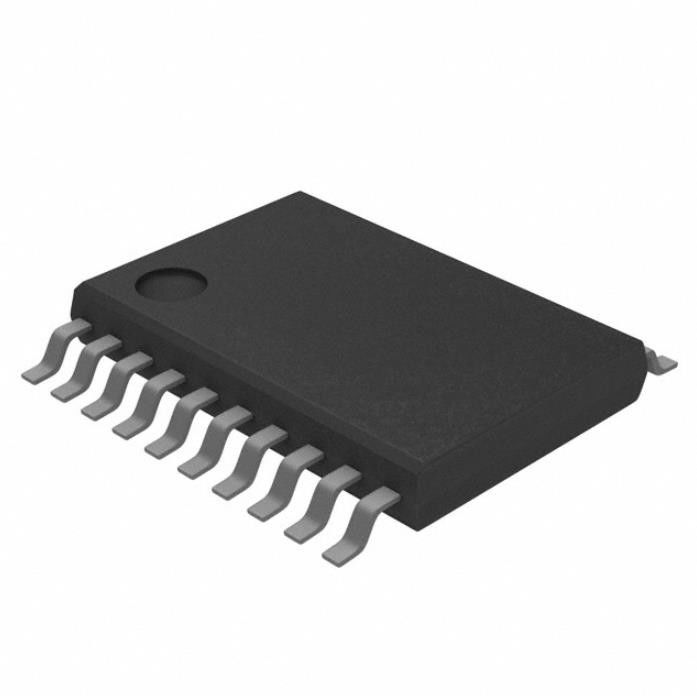

CDCE906PWG4 Clock Integrated Circuit IC Chip Pll Freq Synth 20tssop

• High Performance 3:6 PLL based Clock Synthesizer / Multiplier / Divider

• User Programmable PLL Frequencies

• EEPROM Programming Without the Need to Apply High Programming Voltage

• Easy In-Circuit Programming via SMBus Data Interface

• Wide PLL Divider Ratio Allows 0-ppm Output Clock Error

• Generates Precise Video(27 MHz or 54 MHz)and Audio System Clocks from Multiple Sampling Frequencies(fs=16,22.05,24,32, 44.1,48,96 kHz)

• Clock Inputs Accept a Crystal or aSingle-Ended LVCMOS or a Differential Input Signal

• Accepts Crystal Frequencies from 8 MHz up to 54 MHzAccepts LVCMOS or Differential Input Frequencies up to 167 MHz

• Two Programmable Control Inputs [S0/S1, A0/A1] for User Defined Control Signals

• Six LVCMOS Outputs with Output Frequencies up to 167 MHz

• LVCMOS Outputs can be Programmed for Complementary Signals

• Free Selectable Output Frequency via Programmable Output Switching Matrix [6x6]Including 7-Bit Post-Divider for Each Output

• PLL Loop Filter Components Integrated

• Low Period Jitter(Typ 60 ps)

• Features Spread Spectrum Clocking(SSC)for

• Lowering System EMI

• Programmable Center Spread SSC Modulation (±0.1%,±0.25%,and ±0.4%)with a Mean Phase Equal to the Phase of the Non-Modulated Frequency

• Programmable Down Spread SSC Modulation(1%, 1.5%, 2%, and 3%)
• Programmable Output Slew-Rate Control(SRC) for Lowering System EMl

• 3.3-V Device Power Supply

• Commercial Temperature Range 0°C to 70C

• Development and Programming Kit for EasyPLL Design and Programming(TI Pro-Clockm)
• Packaged in 20-Pin TSSOP
