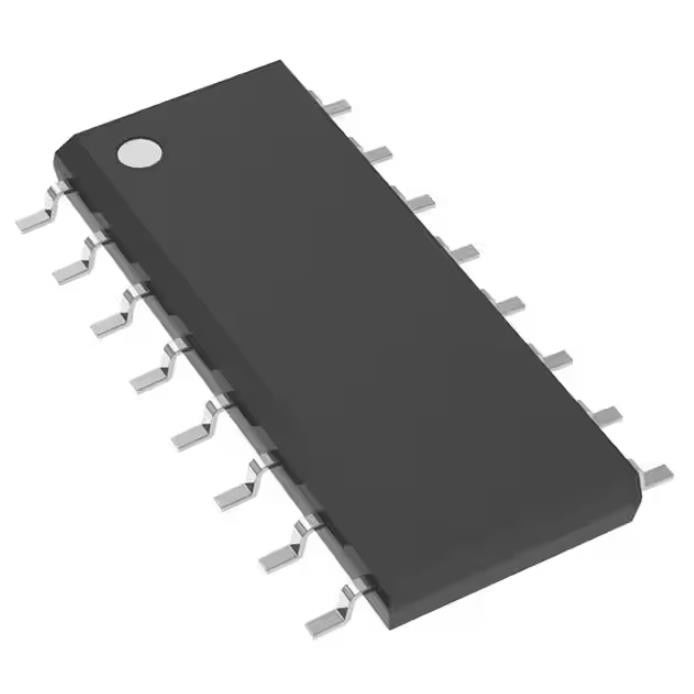

CD74HCT4051M96 Integrated Circuit IC Chip Mux 8:1 130ohm 16soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD74HCT4051M96 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Multiplexer/Demultiplexer Circuit: | 8:01 |
|---|---|---|---|
| Number Of Circuits: | 1 | On-State Resistance (Max): | 130Ohm |
| Channel-to-Channel Matching (ΔRon): | 5Ohm | Voltage - Supply, Single (V+): | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±): | ±1V ~ 5V | -3db Bandwidth: | 180MHz |
Product Description
CD74HCT4051M96 Integrated Circuit IC Chip Mux 8:1 130ohm 16soic
1 Circuit IC Switch 8:1 130Ohm 16-SOIC
Specifications of CD74HCT4051M96
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 130Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 180MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 400nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74HCT4051 |
Features of CD74HCT4051M96
• Wide Analog Input Voltage Range: 5-V Maximum
• Low ON-Resistance
– 70-Ω Typical (VCC – VEE 4.5 V)
– 40-Ω Typical (VCC – VEE 9 V)
• Low Crosstalk Between Switches
• Fast Switching and Propagation Speeds
• Break-Before-Make Switching
• Wide Operating Temperature Range: –55°C to +125°C
• CD54HC and CD74HC Types
– Operation Control Voltage: 2 V to 6 V
– Switch Voltage: 0 V to 10 V
• CD54HCT and CD74HCT Types
– Operation Control Voltage: 4.5 V to 5.5 V
– Switch Voltage: 0 V to 10 V
– Direct LSTTL Input Logic Compatibility VIL 0.8-V Max, VIH 2-V Min
– CMOS Input Compatibility II ≤ 1 µA at VOL, VOH
• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
Applications of CD74HCT4051M96
• Digital Radio
• Signal Gating
• Factory Automation
• Televisions
• Appliances
• Programmable Logic Circuits
• Sensors
Environmental & Export Classifications of CD74HCT4051M96
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
