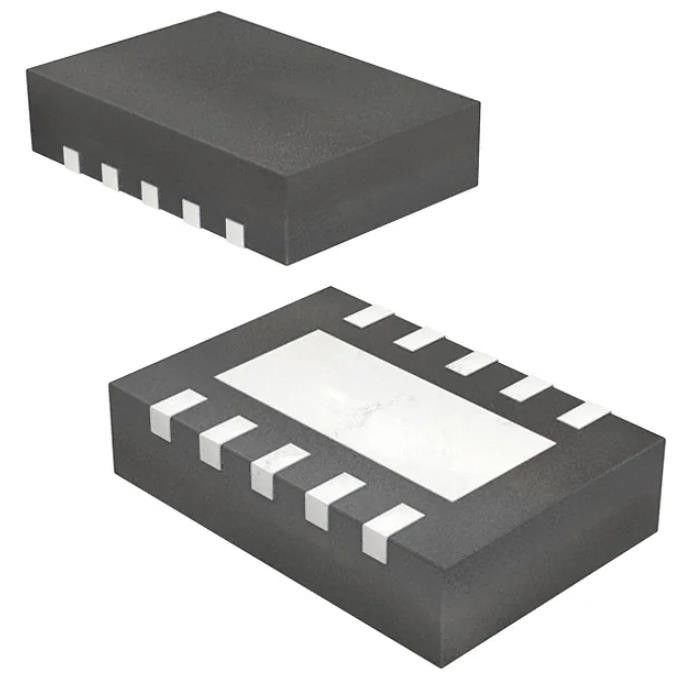

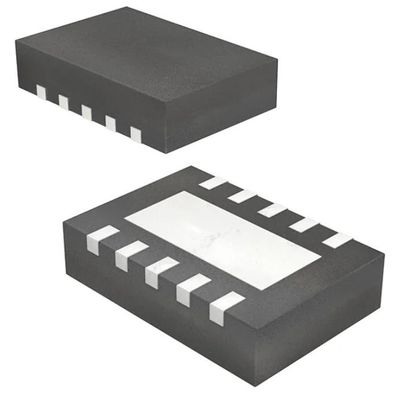

BQ25050DQCR Power Integrated Circuit IC Chip Batt Chg Li-Ion 1cell 10wson
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BQ25050DQCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Battery Chemistry: | Lithium Ion |
|---|---|---|---|
| Number Of Cells: | 1 | Current - Charging: | Constant - Programmable |
| Voltage - Supply (Max): | 10.2V | Fault Protection: | Over Temperature, Over Voltage |
| Charge Current - Max: | 1A | Battery Pack Voltage: | 4.2V |
Product Description
BQ25050DQCR Power Integrated Circuit IC Chip Batt Chg Li-Ion 1cell 10wson
Charger IC Lithium Ion 10-WSON (3x2)
Specifications of BQ25050DQCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Chargers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 10.2V |
| Interface | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x2) |
| Base Product Number | BQ25050 |
Features of BQ25050DQCR
• 30V input Rating, With 10.5V Over-Voltage Protection (OVP)
• FET Controller for External Battery FET for External Power Path Control (BGATE)
• Input Voltage Dynamic Power Management
• 50mA integrated Low Dropout Linear Regulator (LDO)
• Programmable Charge Current Through Single Input Interface (CTRL)
• 0.5% Battery Voltage Regulation Accuracy
• 7% Charge Current Regulation Accuracy
• Thermal Regulation and Protection
• Battery NTC Monitoring During Charge and Discharge
• Status Indication – Charging/Done and Temperature Faults
• Available in small 2mm × 3mm 10 Pin SON Package
Applications of BQ25050DQCR
• Smart Phones
• Mobile Phones
• Portable Media Players
• Low Power Handheld Devices
Environmental & Export Classifications of BQ25050DQCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
