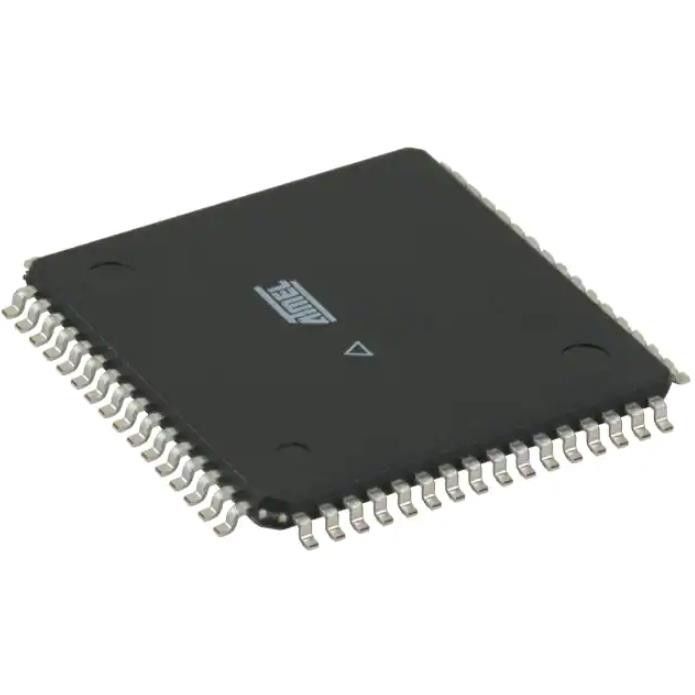

MCU ATMEGA64A-AUR IC Chips 8 Bit Microcontroller 64KB 64TQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATMEGA64A-AUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | AVR |
|---|---|---|---|
| Core Size: | 8-Bit | Speed: | 16MHz |
| Connectivity: | I²C, SPI, UART/USART | Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number Of I/O: | 53 | Program Memory Size: | 64KB (32K X 16) |
| High Light: | ATMEGA64A-AUR IC Chips,MCU ATMEGA64A-AUR,8 Bit Microcontroller 64KB 64TQFP |
||
Product Description
ATMEGA64A-AUR Integrated Circuit IC Chip Mcu 8bit 64kb Flash 64tqfp
AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 64KB (32K x 16) FLASH 64-TQFP (14x14)
Specifications of ATMEGA64A-AUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | AVR® ATmega |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (14x14) |
| Base Product Number | ATMEGA64 |
Features of ATMEGA64A-AUR
• High-performance, Low-power Atmel AVR 8-bit Microcontroller
• Advanced RISC Architecture
– 130 Powerful Instructions - Most Single-clock Cycle Execution
– 32 × 8 General Purpose Working Registers + Peripheral ControlRegisters
– Fully Static Operation
– Up to 16MIPS Throughput at 16MHz
– On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
– 64Kbytes of In-System Self-programmable Flash program memory
– 2Kbytes EEPROM
– 4Kbytes Internal SRAM
– Write/Erase cycles: 10,000 Flash/100,000 EEPROM
– Data retention: 20 years at 85°C/100 years at 25°C(1)
– Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
– Up to 64 Kbytes Optional External Memory Space
– Programming Lock for Software Security
– SPI Interface for In-System Programming
• JTAG (IEEE std. 1149.1 Compliant) Interface
– Boundary-scan Capabilities According to the JTAG Standard
– Extensive On-chip Debug Support
ATmega103 Compatibility Mode of ATMEGA64A-AUR
• One USART instead of two, Asynchronous mode only. Only the eight least significant bits of the Baud Rate Register is available.
• One 16 bits Timer/Counter with two compare registers instead of two 16-bit Timer/Counters with three compare registers.
• Two-wire serial interface is not supported.
• Port C is output only.
• Port G serves alternate functions only (not a general I/O port).
• Port F serves as digital input only in addition to analog input to the ADC.
• Boot Loader capabilities is not supported.
• It is not possible to adjust the frequency of the internal calibrated RC Oscillator.
• The External Memory Interface can not release any Address pins for general I/O, neither configure different wait-states to different External Memory Address sections.
• In addition, there are some other minor differences to make it more compatible to ATmega103:
• Only EXTRF and PORF exists in MCUCSR.
• Timed sequence not required for Watchdog Time-out change.
• External Interrupt pins 3 - 0 serve as level interrupt only.
• USART has no FIFO buffer, so data overrun comes earlier
Environmental & Export Classifications of ATMEGA64A-AUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
