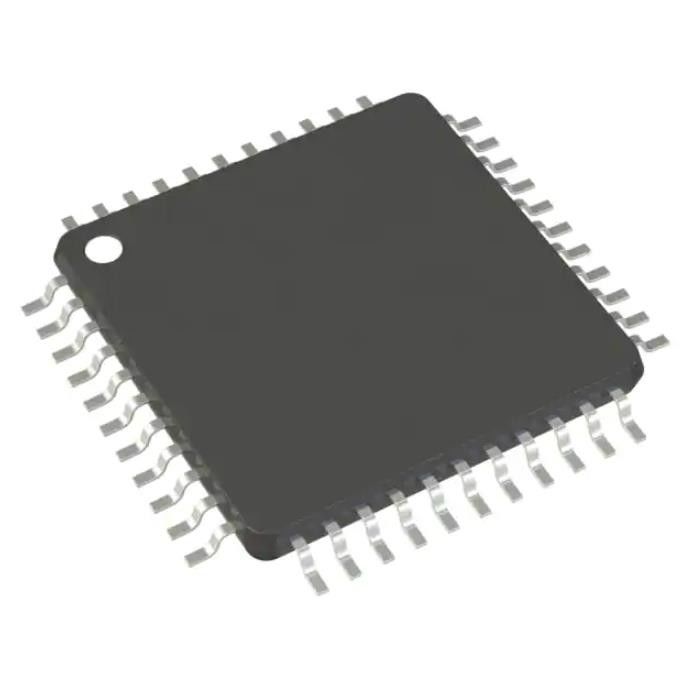

ATMEGA644PA-AUR IC Circuit 64KB FLASH 44TQFP Mcu 8bit
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATmega644PA-AUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Core Processor: | AVR |
|---|---|---|---|
| Core Size: | 8-Bit | Speed: | 20MHz |
| Connectivity: | I²C, SPI, UART/USART | Peripherals: | Brown-out Detect/Reset, POR, PWM, WDT |
| Number Of I/O: | 32 | Program Memory Size: | 64KB (32K X 16) |
| High Light: | ATMEGA644PA-AUR IC Circuit,64KB FLASH 44TQFP Mcu 8bit,44TQFP ATMEGA644PA-AUR |
||
Product Description
ATmega644PA-AUR Integrated Circuit IC Chip Mcu 8bit 64kb Flash 44tqfp
AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 64KB (32K x 16) FLASH 44-TQFP (10x10)
Specifications of ATmega644PA-AUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | AVR® ATmega |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-TQFP |
| Supplier Device Package | 44-TQFP (10x10) |
| Base Product Number | ATMEGA644 |
Features of ATmega644PA-AUR
• High-performance, low-power 8-bit AVR® Microcontroller
• Advanced RISC architecture
• 131 powerful Instructions – most single-clock cycle execution
• 32 × 8 general purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On-chip 2-cycle multiplier
• High endurance non-volatile memory segments
• 16/32/64/128KBytes of In-System Self-programmable Flash program memory
• 512/1K/2K/4KBytes EEPROM
• 1/2/4/16KBytes Internal SRAM
• Write/Erase Cycles: 10,000 Flash/ 100,000 EEPROM
• Data retention: 20 years at 85°C/ 100 years at 25°C(1)
• Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
• Programming Lock for Software Security
• QTouch® Library Support
• Capacitive touch buttons, sliders and wheels
• QTouch and QMatrix™ acquisition
• Up to 64 sense channels
• JTAG (IEEE std. 1149.1 Compliant) Interface
• Boundary-scan Capabilities According to the JTAG Standard
• Extensive On-chip Debug Support
• Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
Counter Unit of ATmega644PA-AUR
ATmega164A/164PA/324A/324PA/644A/644PA/1284/1284P uses the same type of crystal oscillator for Lowfrequency Crystal Oscillator and Timer/Counter Oscillator. See ”Low Frequency Crystal Oscillator” on page 43 for details on the oscillator and crystal requirements. The device can operate its Timer/Counter2 from an external 32.768kHz watch crystal or a external clock source. See ”Clock source connections” on page 40 for details. Applying an external clock source to TOSC1 can be done if EXTCLK in the ASSR Register is written to logic one. See ”OCR2B – Output Compare Register B” on page 163 for further description on selecting external clock as input instead of a 32.768kHz watch crystal.
Environmental & Export Classifications of ATmega644PA-AUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
