ATA5833-WNQW Wireless Rf Module Ic Rf Txrx+Mcu Ism<1ghz 32vfqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ATA5833-WNQW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Type: | TxRx + MCU | RF Family/Standard: | General ISM < 1GHz |
| Modulation: | ASK, FSK | Frequency: | 315MHz, 434MHz, 868MHz, 915MHz |
| Data Rate (Max): | 120kbpsDT | Power - Output: | 14.5dBm |
Product Description
ATA5833-WNQW Wireless Rf Module Ic Rf Txrx+Mcu Ism<1ghz 32vfqfn

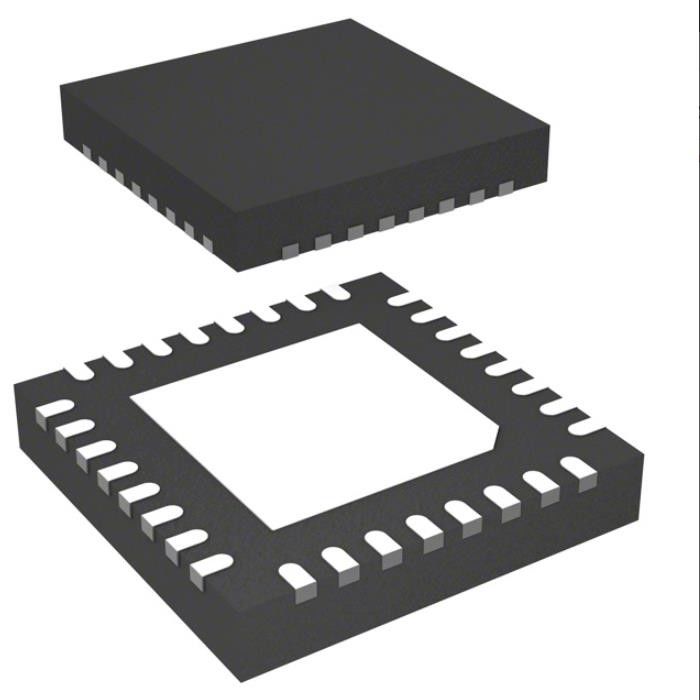

IC RF TxRx + MCU General ISM < 1GHz 315MHz, 434MHz, 868MHz, 915MHz 32-VFQFN Exposed Pad
Specifications of ATA5833-WNQW
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | - |
| Modulation | ASK, FSK |
| Frequency | 315MHz, 434MHz, 868MHz, 915MHz |
| Data Rate (Max) | 120kbps |
| Power - Output | 14.5dBm |
| Sensitivity | -125dBm |
| Memory Size | 24kB ROM |
| Serial Interfaces | SPI |
| GPIO | 2 |
| Voltage - Supply | 1.9V ~ 3.6V, 2.4V ~ 5.5V |
| Current - Receiving | 9.8mA |
| Current - Transmitting | 9.4mA ~ 13.8mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | ATA5833 |
Features of ATA5833-WNQW
● AVR® microcontroller core with 1Kbyte SRAM and 24Kbyte RF library in firmware(ROM)
● Atmel® ATA5831: 20Kbyte of user flash
● Atmel ATA5832: 20Kbyte of user ROM
● Atmel ATA5833: No user memory — RF library in firmware only
● Supported frequency ranges
● Low-band 310MHz to 318MHz, 418MHz to 477MHz
● High-band 836MHz to 956MHz
● 315.00MHz/433.92MHz/868.30MHz and 915.00MHz with one 24.305MHz crystal
● Low current consumption
● 9.8mA for RXMode (low-band), 1.2mA for 21ms cycle three-channel polling
● 9.4mA/13.8mA for TXMode (low-band, Pout = 6dBm/10dBm)
● Typical OFFMode current of 5nA (maximum 600nA at Vs = 3.6V and T = 85°C)
● Programmable output power –12dBm to +14.5dBm (0.4dB step)
● Supports the 0dBm class of ARIB STD-T96
● ASK shaping to reduce spectral bandwidth of modulated PA output signal
● Input 1dB compression point
● –48dBm (full sensitivity level)
● –20dBm (active antenna damping)
● Programmable channel frequency with fractional-N PLL
● 93Hz resolution for low-band
● 185Hz resolution for high-band
● FSK deviation ±0.375kHz to ±93kHz
● FSK sensitivity (Manchester coded) at 433.92MHz
● –108.5dBm at 20Kbit/s f = ± 20kHz BWIF = 165kHz
● –111dBm at 10Kbit/s f = ± 10kHz BWIF = 165kHz
● –114dBm at 5Kbit/s f = ± 5kHz BWIF = 165kHz
● –122.5dBm at 0.75Kbit/s f = ± 0.75kHz BWIF = 25kHz
● ASK sensitivity (Manchester coded) at 433.92MHz
● –110.5dBm at 20Kbit/s BWIF = 80kHz
● –125dBm at 0.5Kbit/s BWIF = 25kHz
● Programmable Rx-IF bandwidth 25kHz to 366kHz (approximately 10% steps)
Applications of ATA5833-WNQW
The transceiver is designed to be used in the following application areas:
● Remote keyless entry system (RKE)
● Passive entry go system (PEG)
● Tire pressure monitoring system (TPM, TPMS)
● Remote start system (RS)
● Remote control systems, e.g., garage door openers
● Smart RF applications
● Telemetering systems
Environmental & Export Classifications of ATA5833-WNQW
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
