ASPI-0630LR-100M-T15 Integrated Circuit IC Chip Fixed Ind 10uh 4a 68 Mohm Smd
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ASPI-0630LR-100M-T15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Molded |
|---|---|---|---|
| Material - Core: | Carbonyl Powder | Inductance: | 10 µH |
| Tolerance: | ±20% | Current Rating (Amps): | 4 A |
| Current - Saturation (Isat): | 5.5A | Shielding: | Shielded |
Product Description

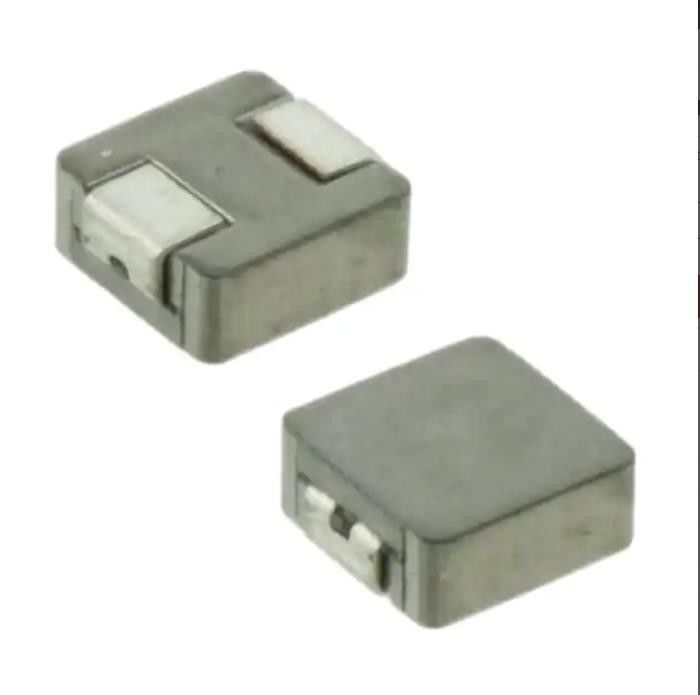

ASPI-0630LR-100M-T15 Integrated Circuit IC Chip Fixed Ind 10uh 4a 68 Mohm Smd
10 µH Shielded Molded Inductor 4 A 68mOhm Max Nonstandard
Specifications of ASPI-0630LR-100M-T15
| TYPE | DESCRIPTION |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Abracon LLC |
| Series | ASPI-0630LR |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Molded |
| Material - Core | Carbonyl Powder |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 68mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.262" W (7.20mm x 6.65mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Features of ASPI-0630LR-100M-T15
▪ High saturation current
▪ Low loss due to low DC resistance
▪ Frequency application up to 3MHz
▪ Low profile with max thickness 3.0mm
Applications of ASPI-0630LR-100M-T15
▪ DC/DC converters in Notebook, desktops, andservers
▪ Low profile, high current power supplies
▪ Low profile, high current power supplies
Environmental & Export Classifications of ASPI-0630LR-100M-T15
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
