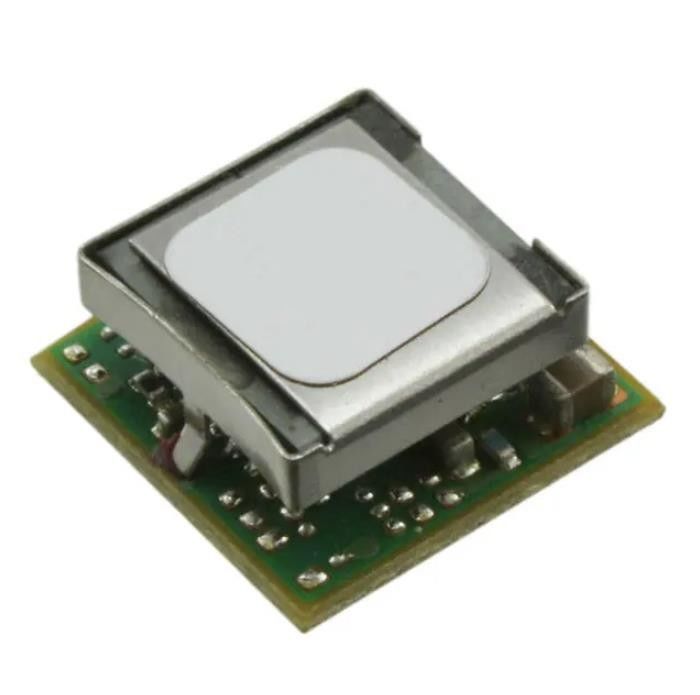

APXH006A0X-SRZ Integrated Circuit IC Chip DC Converter 0.6V-3.6V 21W
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | APXH006A0X-SRZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Type: | Non-Isolated PoL Module |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.4V |
| Voltage - Input (Max): | 5.5V | Voltage - Output 1: | 0.6 ~ 3.6V |
| Current - Output (Max): | 6A | Power (Watts): | 21 W |
| High Light: | APXH006A0X-SRZ Integrated Circuit,IC Chip DC Converter 0.6V,IC Chip DC Converter 3.6V |
||
Product Description
APXH006A0X-SRZ Integrated Circuit IC Chip Dc Converter 0.6-3.6v 21w
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.6V 6A 2.4V - 5.5V Input
Specifications of APXH006A0X-SRZ
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | ABB Power Electronics Inc. |
| Series | PicoTLynx™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.4V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.6 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 21 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm) |
| Control Features | Enable, Active Low |
| Base Product Number | APXH006 |
Features of APXH006A0X-SRZ
▪ Compliant to RoHS Directive 2011/65/EU and amended Directive (EU) 2015/863 (Z versions)
▪ Compatible in a Pb-free or SnPb reflow environment (Z versions)
▪ Compliant to REACH Directive (EC) No 1907/2006
▪ Wide Input voltage range (2.4Vdc-5.5Vdc)
▪ Output voltage programmable from 0.6Vdc to 3.63 Vdc via external resistor
▪ Tunable LoopTM to optimize dynamic output voltage response
▪ Flexible output voltage sequencing EZ-SEQUENCE – APTH versions
▪ Remote sense
▪ Fixed switching frequency
▪ Output overcurrent protection (non-latching)
▪ Overtemperature protection
▪ Cost efficient open frame design
▪ Remote On/Off
▪ Ability to sink and source current
▪ Small size: 12.2 mm x 12.2 mm x 7.25 mm (0.48 in x 0.48 in x 0.29 in)
▪ Wide operating temperature range (-40°C to 85°C)
▪ ANSI/UL* 62368-1 and CAN/ CSA† C22.2 No. 62368-1 Recognized, DIN VDE‡ 0868-1/A11:2017 (EN62368- 1:2014/A11:2017)
▪ ISO** 9001 and ISO 14001 certified manufacturing facilities
Applications of APXH006A0X-SRZ
▪ Distributed power architectures
▪ Intermediate bus voltage applications
▪ Telecommunications equipment
▪ Servers and storage applications
▪ Networking equipment
▪ Industrial Equipment
Environmental & Export Classifications of APXH006A0X-SRZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
