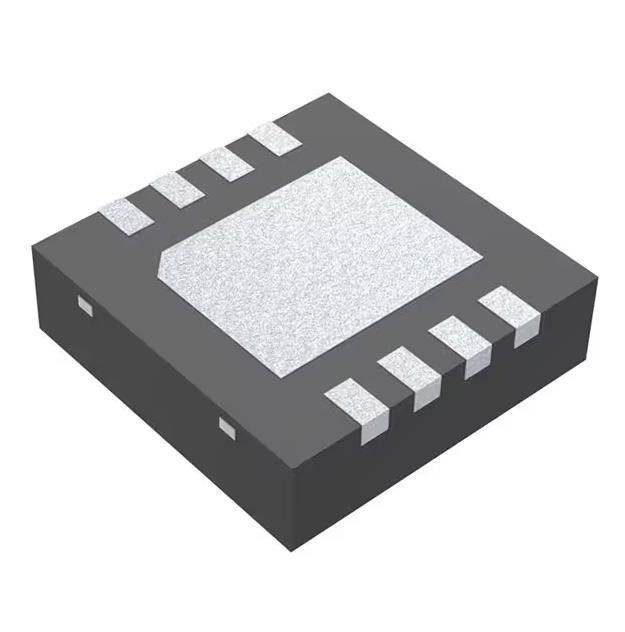

LM5085SDX/NOPB Power Switch ICs DC-DC Controller IC 8-WSON (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM5085SDX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 4.5V ~ 75V | Frequency - Switching: | Up To 1MHz |
| Duty Cycle: | 100% | Synchronous Rectifier: | No |
| Clock Sync: | No | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
LM5085SDX/NOPB Power Switch ICs DC-DC Controller IC 8-WSON (3x3)
Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-WSON (3x3)
Specifications of LM5085SDX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 75V |
| Frequency - Switching | Up to 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, On Time Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (3x3) |
| Base Product Number | LM5085 |
Features of LM5085SDX/NOPB
• LM5085-Q1 is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to 125°C Operating Junction Temperature)
• Wide 4.5-V to 75-V Input Voltage Range
• Adjustable Current Limit Using RDS(ON) or a Current Sense Resistor
• Programmable Switching Frequency to 1MHz
• No Loop Compensation Required
• Ultra-Fast Transient Response
• Nearly Constant Operating Frequency with Line and Load Variations
• Adjustable Output Voltage from 1.25 V
• Precision ±2% Feedback Reference
• Capable of 100% Duty Cycle Operation
• Internal Soft-start Timer
• Integrated High Voltage Bias Regulato
• Thermal Shutdown
• Package:
– HVSSOP-8
– VSSOP-8
– WSON-8
Applications of LM5085SDX/NOPB
• Automotive Infotainment
• Battery/Super Capacitor Chargers
• LED Drivers
Environmental & Export Classifications of LM5085SDX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
