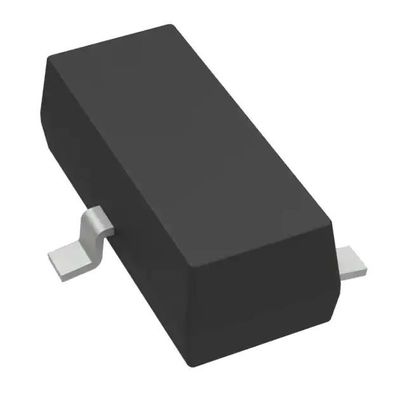

TLV431BIDBZR Shunt Voltage Reference IC SOT23-3 15mA 1.24V 6VV
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV431BIDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Min/Fixed): | 1.24V | Voltage - Output (Max): | 6 V |
|---|---|---|---|
| Current - Output: | 15 MA | Tolerance: | ±0.5% |
| Current - Cathode: | 100 µA | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TLV431BIDBZR,15mA Shunt Voltage Reference IC,1.24V Shunt Voltage Reference IC |
||
Product Description
TLV431BIDBZR IC VREF SHUNT ADJ 0.5% SOT23-3 15 mA 1.24V 6 VV
Shunt Voltage Reference IC Adjustable 1.24V 6 VV ±0.5% 15 mA SOT-23-3
Specifications of CC1206JRNPO9BN391
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 6 V |
| Current - Output | 15 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 100 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TLV431 |
Features of CC1206JRNPO9BN391
• Low-Voltage Operation, VREF = 1.24 V
• Adjustable Output Voltage, VO = VREF to 6 V
• Reference Voltage Tolerances at 25°C
– 0.5% for TLV431B
– 1% for TLV431A
– 1.5% for TLV431
• Typical Temperature Drift
– 4 mV (0°C to 70°C)
– 6 mV (–40°C to 85°C)
– 11 mV (–40°C to 125°C)
• Low Operational Cathode Current, 80 µA Typical
• 0.25-Ω Typical Output Impedance
• Ultra-Small SC-70 Package Offers 40% Smaller Footprint Than SOT-23-3
• See TLVH431 and TLVH432 for:
– Wider VKA (1.24 V to 18 V) and IK (80 mA)
– Additional SOT-89 Package
– Multiple Pinouts for SOT-23-3 and SOT-89 Packages
• On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing of All Parameters.
Applications of CC1206JRNPO9BN391
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator With Integrated Reference
Environmental & Export Classifications of CC1206JRNPO9BN391
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
