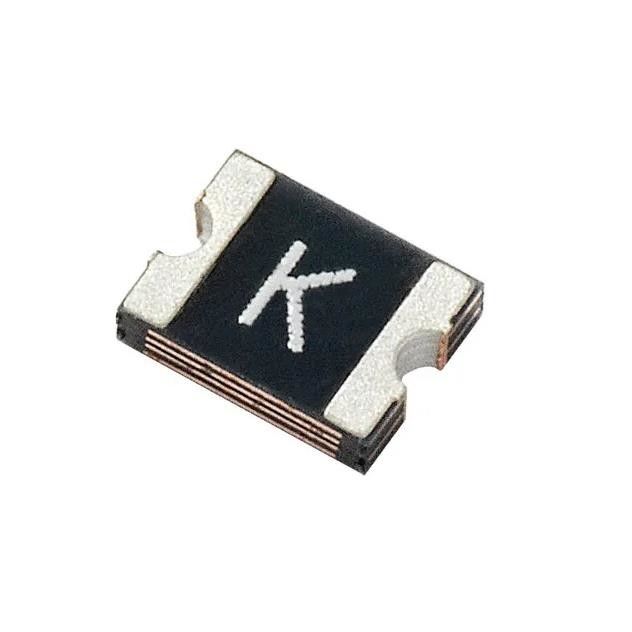

1210L150/16WR PTC Resettable Fuse 16V 1.5A Ih Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1210L150/16WR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Max: | 16V | Current - Max: | 100 A |
|---|---|---|---|
| Current - Hold (Ih) (Max): | 1.5 A | Current - Trip (It): | 3 A |
| Time To Trip: | 300 Ms | Resistance - Initial (Ri) (Min): | 40 MOhms |
| Resistance - Post Trip (R1) (Max): | 110 MOhms | Operating Temperature: | -40°C ~ 85°C |
| High Light: | 1210L150/16WR,PTC Resettable Fuse 16V,1.5A PTC Resettable Fuse |
||
Product Description
1210L150/16WR PTC Resettable Fuse 16V 1.5 A Ih Surface Mount
Polymeric PTC Resettable Fuse 16V 1.5 A Ih Surface Mount 1210 (3225 Metric), Concave
Specifications of 1210L150/16WR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Mfr | Littelfuse Inc. |
| Series | POLY-FUSE®, 1210L |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 1.5 A |
| Current - Trip (It) | 3 A |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 110 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.042" (1.07mm) |
| Lead Spacing | - |
| Approval Agency | - |
Features of 1210L150/16WR
■ RoHS compliant, lead-free and halogen-free
■ Fast response to fault currents
■ Compact design saves board space
■ Low resistance
■ Low-profile
■ Compatible with high temperature solders
Applications of 1210L150/16WR
■ USB peripherals
■ Disk drives
■ CD-ROMs
■ PC motherboards - plug and play protection
■ Mobile phones - battery and port protection
■ PDAs / digital cameras
■ Game console port protection
Environmental & Export Classifications of 1210L150/16WR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
