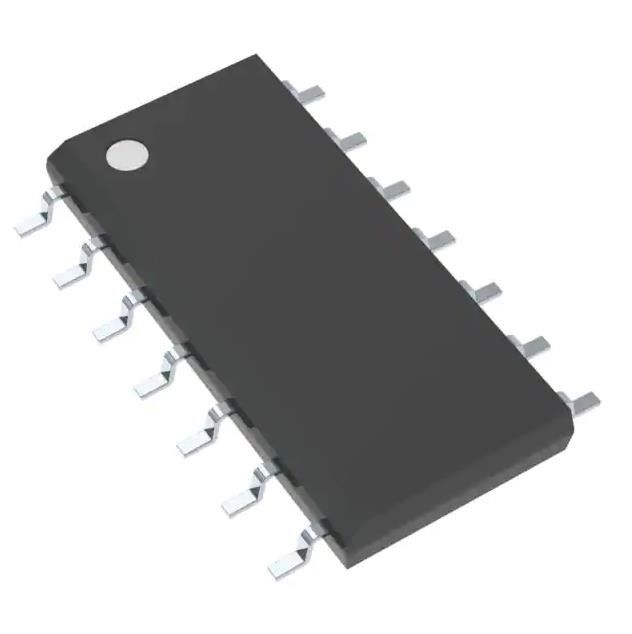

TL2843BDR Power Switch ICs REG CTRLR MULT TOP 14SOIC Up to 500kHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL2843BDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Output Phases: | 1 |
|---|---|---|---|
| Voltage - Supply (Vcc/Vdd): | 7.6V ~ 30V | Frequency - Switching: | Up To 500kHz |
| Duty Cycle (Max): | 96% | Operating Temperature: | -40°C ~ 85°C (TA) |
| Output Configuration: | Positive | Topology: | Boost, Flyback, Forward |
Product Description
TL2843BDR Power Switch ICs REG CTRLR MULT TOP 14SOIC Up to 500kHz
Boost, Flyback, Forward Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 14-SOIC
Specifications of LM94022BIMGX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | TL2843 |
Features of LM94022BIMGX/NOPB
• Low Start-Up Current (<0.5 mA)
• Trimmed Oscillator Discharge Current
• Current Mode Operation to 500 kHz
• Automatic Feed-Forward Compensation
• Latching PWM for Cycle-by-Cycle Current
Limiting
• Internally Trimmed Reference With
Undervoltage Lockout
• High-Current Totem-Pole Output Undervoltage
Lockout With Hysteresis
• Double-Pulse Suppression
Description of LM94022BIMGX/NOPB
The TL284xB and TL384xB series are pin compatible with the standard TL284x and TL384x with the following
improvements. The start-up current is specified to be 0.5 mA (max), while the oscillator discharge current is
trimmed to 8.3 mA (typ). In addition, during undervoltage lockout conditions, the output has a maximum
saturation voltage of 1.2 V while sinking 10 mA (VCC = 5 V).
Environmental & Export Classifications of LM94022BIMGX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
