ADL5380ACPZ-R7 Wireless RF Module Demod Ic 400mhz-6ghz 24lfcsp
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADL5380ACPZ-R7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Demodulator |
|---|---|---|---|
| LO Frequency: | 400MHz ~ 6GHz | RF Frequency: | 400MHz ~ 6GHz |
| P1dB: | 11.6dBm | Gain: | 6.9dB |
| Noise Figure: | 10.9dB | Current - Supply: | 245 MA |
Product Description
ADL5380ACPZ-R7 Wireless RF Module Demod Ic 400mhz-6ghz 24lfcsp

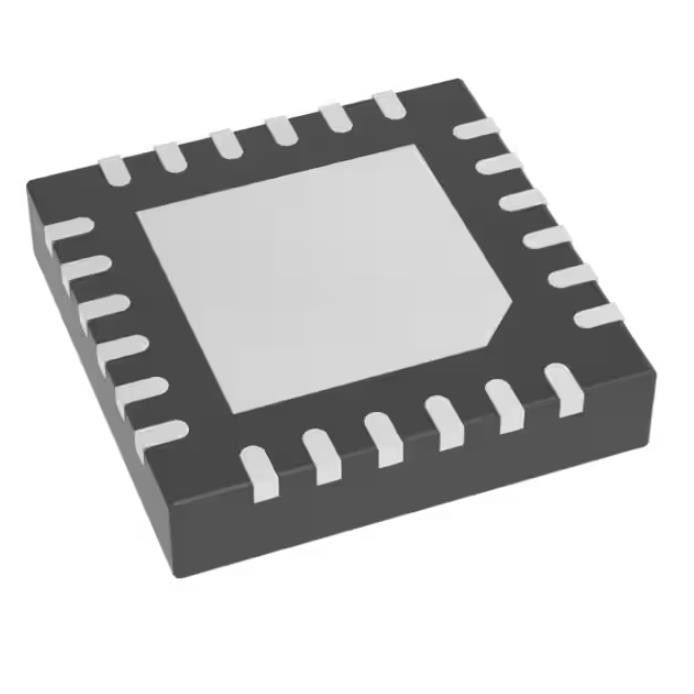

RF Demodulator IC 400MHz ~ 6GHz 24-WFQFN Exposed Pad, CSP
Specifications of ADL5380ACPZ-R7
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Demodulators | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Demodulator |
| LO Frequency | 400MHz ~ 6GHz |
| RF Frequency | 400MHz ~ 6GHz |
| P1dB | 11.6dBm |
| Gain | 6.9dB |
| Noise Figure | 10.9dB |
| Current - Supply | 245 mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Base Product Number | ADL5380 |
Features of ADL5380ACPZ-R7
Operating RF and LO frequency: 400 MHz to 6 GHz Input IP3
30 dBm at 900 MHz
28 dBm at 1900 MHz
Input IP2: >65 dBm at 900 MHz
Input P1dB (IP1dB): 11.6 dBm at 900 MHz
Noise figure (NF)
10.9 dB at 900 MHz
11.7 dB at 1900 MHz
Voltage conversion gain: ~7 dB
Quadrature demodulation accuracy at 900 MHz
Phase accuracy: ~0.2°
Amplitude balance: ~0.07 dB
Demodulation bandwidth: ~390 MHz
Baseband I/Q drive: 2 V p-p into 200 Ω
Single 5 V supply
Applications of ADL5380ACPZ-R7
Cellular W-CDMA/GSM/LTE
Microwave point-to-(multi)point radios
Broadband wireless and WiMAX
Environmental & Export Classifications of ADL5380ACPZ-R7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
