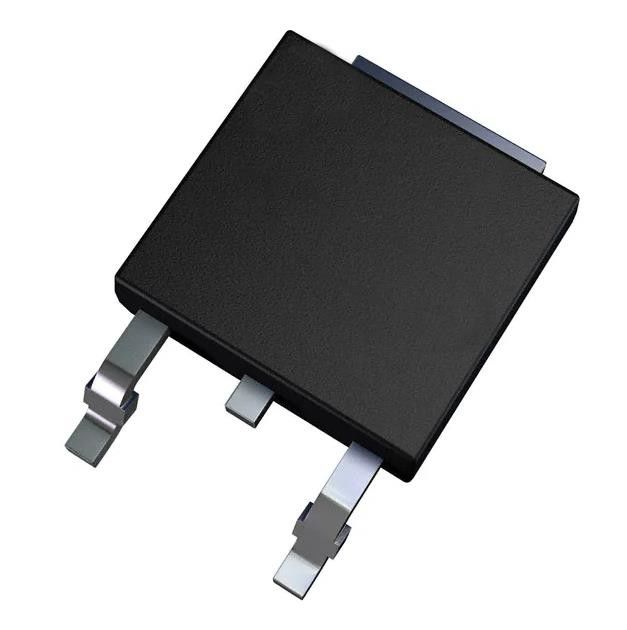

STPS16170CB-TR Diode Array 1 Pair 170 V 8A Surface Mount TO-252-3 DPak SC-63
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STPS16170CB-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Diode Configuration: | 1 Pair Common Cathode | Technology: | Schottky |
|---|---|---|---|
| Voltage - DC Reverse (Vr) (Max): | 170 V | Current - Average Rectified (Io) (per Diode): | 8A |
| Voltage - Forward (Vf) (Max) @ If: | 920 MV @ 8 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr: | 15 µA @ 170 V | Operating Temperature - Junction: | 175°C (Max) |
| High Light: | STPS16170CB-TR,TO-252-3 Diode Array,170 V 8A Diode Array |
||
Product Description
STPS16170CB-TR Diode Array 1 Pair 170 V 8A Surface Mount TO-252-3 DPak SC-63
Diode Array 1 Pair Common Cathode 170 V 8A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63
Specifications of STPS16170CB-TR
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 170 V |
| Current - Average Rectified (Io) (per Diode) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 15 µA @ 170 V |
| Operating Temperature - Junction | 175°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | STPS16170 |
Features of STPS16170CB-TR
High junction temperature capability
Good trade off between leakage current and forward voltage drop
Low leakage current
Avalanche capability specified
ECOPACK®2 compliant component for DPAK and D²PAK on demand
Good trade off between leakage current and forward voltage drop
Low leakage current
Avalanche capability specified
ECOPACK®2 compliant component for DPAK and D²PAK on demand
Description of STPS16170CB-TR
This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.
Environmental & Export Classifications of STPS16170CB-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
