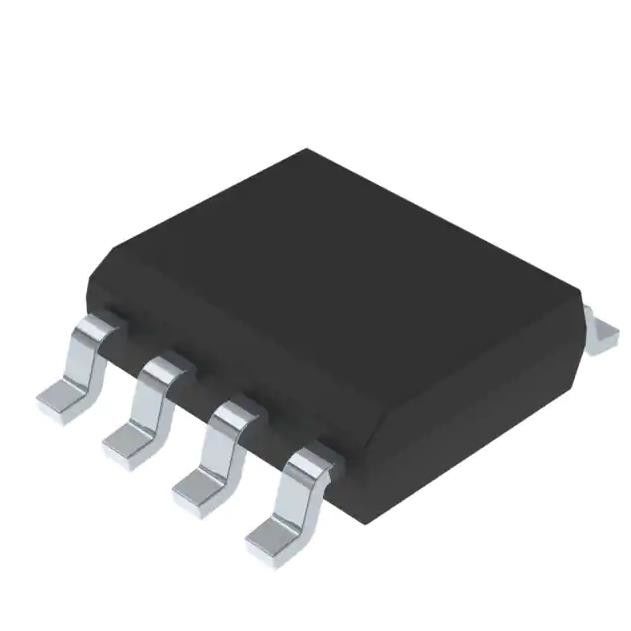

VN5E160ASTR-E Power Switch/Driver 1:1 N-Channel 7A 8-SOIC 4.5V ~ 28V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VN5E160ASTR-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Ratio - Input:Output: | 1:1 | Voltage - Load: | 4.5V ~ 28V |
|---|---|---|---|
| Output Type: | N-Channel | Number Of Outputs: | 1 |
| Interface: | On/Off | Output Configuration: | High Side |
| Voltage - Supply (Vcc/Vdd): | Not Required | Current - Output (Max): | 7A |
Product Description
VN5E160ASTR-E Power Switch/Driver 1:1 N-Channel 7A 8-SOIC 4.5V ~ 28V
IC PWR SWITCH N-CHANNEL 1:1 8SO
Specifications of VN5E160ASTR-E
| YPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | STMicroelectronics |
| Series | VIPower |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 28V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 7A |
| Rds On (Typ) | 160mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | VN5E160 |
Features of VN5E160ASTR-E
■ General
– Inrush current active management by
power limitation
– Very low standby current
– 3.0 V CMOS compatible inputs
– Optimized electromagnetic emission
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
– Very low current sense leakage
■ Diagnostic functions
– Proportional load current sense
– High-precision current sense for wide-range currents
– Current sense disable
– OFF-state open-load detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
■ Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self-limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Overtemperature shutdown with autorestart (thermal shutdown)
– Inrush current active management by
power limitation
– Very low standby current
– 3.0 V CMOS compatible inputs
– Optimized electromagnetic emission
– Very low electromagnetic susceptibility
– In compliance with the 2002/95/EC european directive
– Very low current sense leakage
■ Diagnostic functions
– Proportional load current sense
– High-precision current sense for wide-range currents
– Current sense disable
– OFF-state open-load detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
■ Protections
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self-limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Overtemperature shutdown with autorestart (thermal shutdown)
Applications of VN5E160ASTR-E
■ All types of resistive, inductive and capacitive loads
■ Suitable as LED driver
Environmental & Export Classifications of VN5E160ASTR-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
