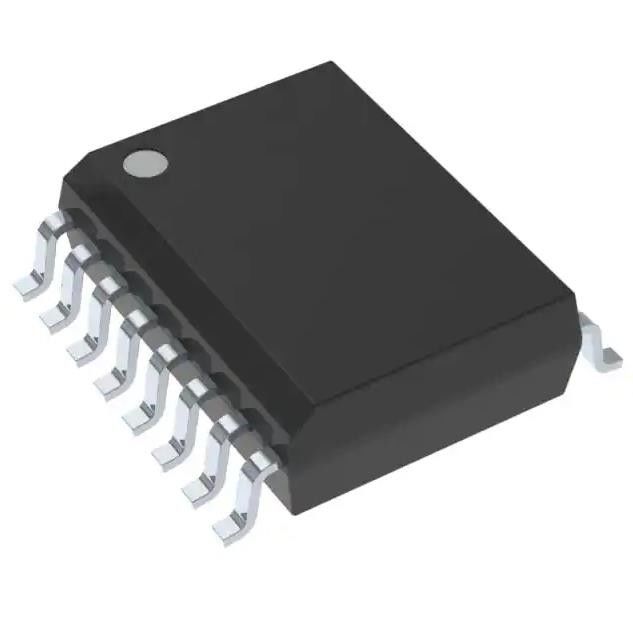

AMC1305L25DWR Isolated Module 16B 78K LVDS SERIAL 16-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | AMC1305L25DWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | AMC1305L25DWR | Number Of Channels: | 1 |
|---|---|---|---|
| Resolution (Bits): | 16 B | Sampling Rate (Per Second): | 78k |
| Voltage - Supply: | 3V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
| Supplier Device Package: | 16-SOIC | Data Interface: | LVDS - Serial |
| High Light: | AMC1305L25DWR,Isolated Module 16B 78K,LVDS Isolated Module 16B |
||
Product Description
AMC1305L25DWR Transistor Output Optocouplers 16 b 78k LVDS - Serial 16-SOIC
Isolated Module 16 b 78k LVDS - Serial 16-SOIC
Features of AMC1305L25DWR
• Pin-compatible family optimized for shunt-resistorbased current measurements:
– ±50-mV or ±250-mV input voltage ranges
– CMOS or LVDS digital interface options
• Excellent DC performance supporting highprecision sensing on system level:
– Offset error: ±50 µV or ±150 µV (max)
– Offset drift: 1.3 µV/°C (max)
– Gain error: ±0.3% (max)
– Gain drift: ±40 ppm/°C (max)
• Safety-related certifications:
– 7000-VPK reinforced isolation per
DIN VDE V 0884-11: 2017-01
– 5000-VRMS isolation for 1 minute per UL1577
– CAN/CSA no. 5A-component acceptance
service notice and IEC 62368-1 end equipment
standard
• Transient immunity: 15 kV/µs (min)
• High electromagnetic field immunity
(see application note SLLA181A)
• External 5-MHz to 20-MHz clock input for
easier system-level synchronization
• Fully specified over the extended industrial
temperature range
Product Attributes of AMC1305L25DWR
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
AMC1305L25DWR
|
|
Type
|
Isolated Module
|
|
Number of Channels
|
1
|
|
Resolution (Bits)
|
16 b
|
|
Sampling Rate (Per Second)
|
78k
|
|
Data Interface
|
LVDS - Serial
|
|
Voltage Supply Source
|
Analog and Digital
|
|
Voltage - Supply
|
3V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Base Product Number
|
AMC1305
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of AMC1305L25DWR
• Shunt-resistor-based current sensing in:
– Industrial motor drives
– Photovoltaic inverters
– Uninterruptible power supplies
• Isolated voltage sensing
