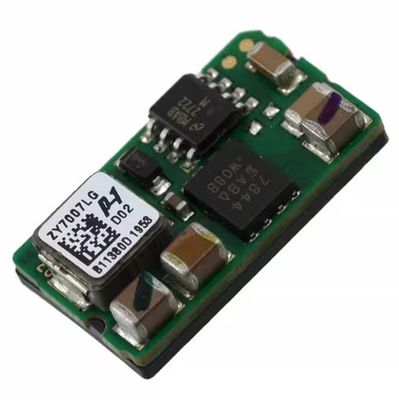

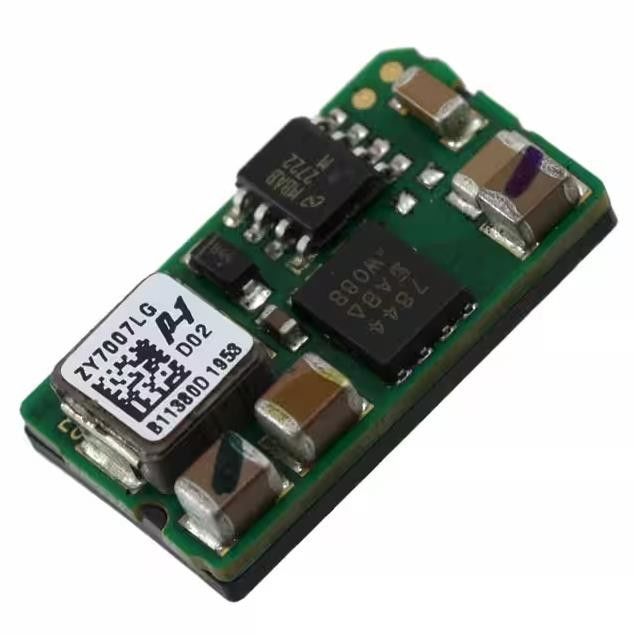

ZY7007LG-T3 DC Converter 1 Output 0.5 ~ 5.5V 7A 3V - 14V Input
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ZY7007LG-T3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ZY7007LG-T3 | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 3V | Voltage - Output 1: | 0.5 ~ 5.5V |
| Current - Output (Max): | 7A | Operating Temperature: | -40°C ~ 85°C |
Product Description
ZY7007LG-T3 DC Converter 1 Output 0.5 ~ 5.5V 7A 3V - 14V Input
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.5 ~ 5.5V 7A 3V - 14V Input
Features of ZY7007LG-T3
• RoHS lead free and lead-solder-exempt products are
available
• Wide input voltage range: 3V–14V
• High continuous output current: 7A
• Wide programmable output voltage range: 0.5V–5.5V
• Active digital current share
• Single-wire serial communication bus for frequency
synchronization, programming, and monitoring
• Optimal voltage positioning with programmable slope
of the VI line
• Overcurrent, overvoltage, undervoltage, and
overtemperature protection with programmable
thresholds and types
• Programmable fixed switching frequency 0.5-1.0MHz
• Programmable turn-on and turn-off delays
• Programmable turn-on and turn-off voltage slew rates
with tracking protection
• Programmable feedback loop compensation
• Power Good signal with programmable limits
• Programmable fault management
• Start up into the load pre-biased up to 100%
Specifications of ZY7007LG-T3
|
Product
|
ZY7007LG-T3
|
| Package | Tape & Reel (TR) |
|
Type
|
Non-Isolated PoL Module, Digital
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
3V
|
|
Voltage - Input (Max)
|
14V
|
|
Voltage - Output 1
|
0.5 ~ 5.5V
|
|
Voltage - Output 2
|
-
|
|
Voltage - Output 3
|
-
|
|
Current - Output (Max)
|
7A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
-
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
36-SMD Module
|
|
Size / Dimension
|
0.87" L x 0.49" W x 0.26" H (22.2mm x 12.5mm x 6.5mm)
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
Applications of ZY7007LG-T3
• Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
• Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
• Desktops, servers, and portable computing
• Broadband, networking, optical, and
communications systems
• Active memory bus terminators
