TPH2R306NH1,LQ N-Channel 60 V 136A 800mW 170W 8-SOP Advance Surface Mount
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TPH2R306NH1,LQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TPH2R306NH1,LQ | FET Type: | N-Channel |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 60 V | Drive Voltage (Max Rds On, Min Rds On): | 6.5V, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 1mA | Vgs (Max): | ±20V |
Product Description

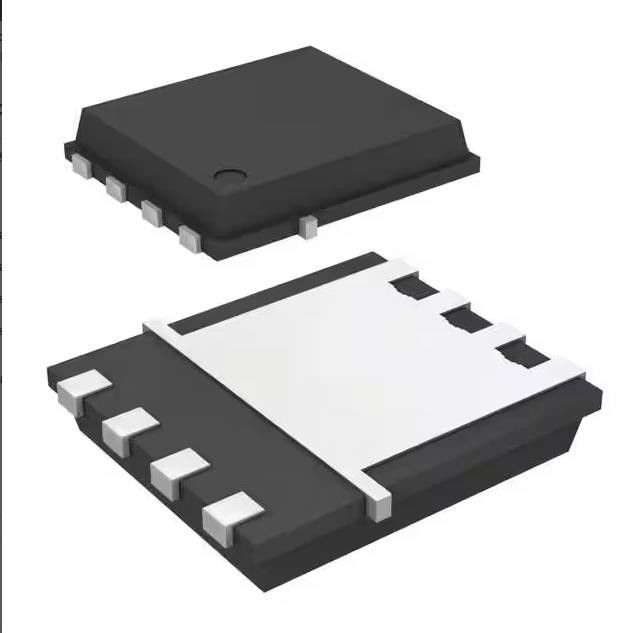

TPH2R306NH1,LQ N-Channel 60 V 136A 800mW 170W 8-SOP Advance Surface Mount
N-Channel 60 V 136A (Tc) 800mW (Ta), 170W (Tc) Surface Mount 8-SOP Advance (5x5.75)
Features of TPH2R306NH1,LQ
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 136A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6.5V, 10V
Rds On (Max) @ Id, Vgs 2.3mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 72 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 6100 pF @ 30 V
Power Dissipation (Max) 800mW (Ta), 170W (Tc)
Specifications of TPH2R306NH1,LQ
|
Mfr
|
Toshiba Semiconductor and Storage
|
|
Series
|
U-MOSVIII-H
|
|
Product
|
TPH2R306NH1,LQ
|
|
FET Type
|
N-Channel
|
| Package | Tape & Reel |
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
136A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
6.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
2.3mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 1mA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
72 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
6100 pF @ 30 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
800mW (Ta), 170W (Tc)
|
|
Operating Temperature
|
150°C
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
8-SOP Advance (5x5.75)
|
|
Package / Case
|
8-PowerTDFN
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
