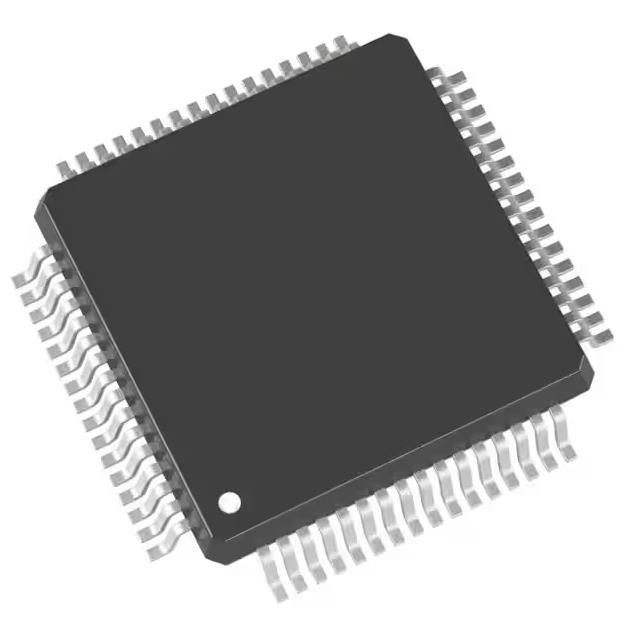

STM32F103RDT6 Power Switch ICs MCU 32BIT 384KB FLASH 64LQFP I/O 51
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | STM32F103RDT6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | STM32F103RDT6 | Core Size: | 32-Bit Single-Core |
|---|---|---|---|
| Speed: | 72KHz | Number Of I/O: | 51 |
| RAM Size: | 64K X 8 | Voltage - Supply (Vcc/Vdd): | 2V ~ 3.6V |
| Data Converters A/D: | 16x12b; D/A 2x12b | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
STM32F103RDT6 Power Switch ICs MCU 32BIT 384KB FLASH 64LQFP I/O 51
ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 24MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
The high-density STM32F103xC/D/E datasheet should be read in conjunction with the STM32F10xxx reference manual.
For information on programming, erasing and protection of the internal Flash memory please refer to the STM32F10xxx Flash programming manual.
Features of STM32F103RDT6
• Core: Arm® 32-bit Cortex®-M3 CPU
– 72 MHz maximum frequency, 1.25 DMIPS/MHz
(Dhrystone 2.1) performance at 0 wait state memory access
– Single-cycle multiplication and hardware division
• Memories
– 256 to 512 Kbytes of Flash memory
– up to 64 Kbytes of SRAM
– Flexible static memory controller with 4 Chip
Select. Supports Compact Flash, SRAM,
PSRAM, NOR and NAND memories
– LCD parallel interface, 8080/6800 modes
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC with calibration
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• 3 × 12-bit, 1 µs A/D converters (up to 21 channels)
– Conversion range: 0 to 3.6 V
– Triple-sample and hold capability
– Temperature sensor
• 2 × 12-bit D/A converters
Specifications of STM32F103RDT6
|
Mfr
|
STMicroelectronics
|
|
Series
|
STM32F1
|
|
Product
|
STM32F103RDT6
|
|
Core Processor
|
ARM® Cortex®-M3
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
72MHz
|
|
Connectivity
|
CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
|
|
Peripherals
|
DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
|
|
Number of I/O
|
51
|
|
Program Memory Size
|
384KB (384K x 8)
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
-
|
|
RAM Size
|
64K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2V ~ 3.6V
|
|
Data Converters
|
A/D 16x12b; D/A 2x12b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
64-LQFP
|
|
Supplier Device Package
|
64-LQFP (10x10)
|
|
Base Product Number
|
STM32F103
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
