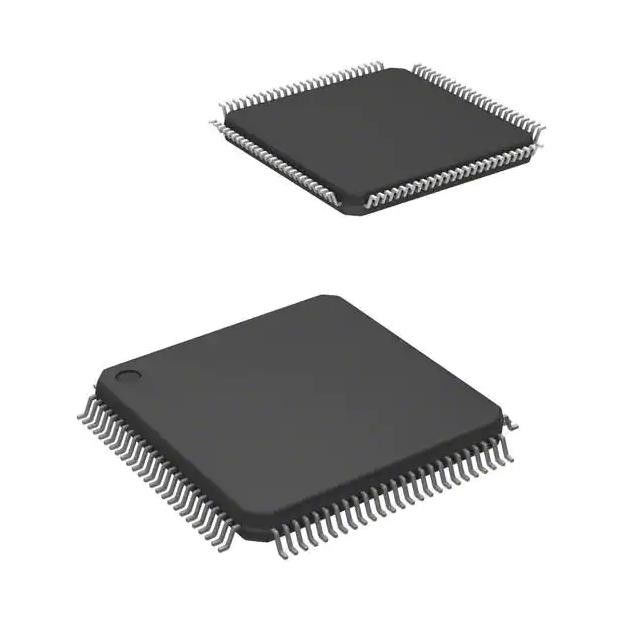

STM32F101VFT6 Power Switch ICs IC MCU 32BIT 256KB FLASH 100LQFP I/O 80
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | STM32F101VFT6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | STM32F101VFT6 | Package: | Tray |
|---|---|---|---|
| Speed: | 24MHz | Number Of I/O: | 80 |
| RAM Size: | 24K X 8 | Voltage - Supply (Vcc/Vdd): | 2V ~ 3.6V |
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
STM32F101VFT6 Power Switch ICs IC MCU 32BIT 256KB FLASH 100LQFP
ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 24MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
The STM32F100xx high-density value line family operates in the –40 to +85 °C and –40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
Features of STM32F101VFT6
• Core: Arm® 32-bit Cortex®-M3 CPU
– 24 MHz maximum frequency, 1.25 DMIPS
/MHz (Dhrystone 2.1) performance
– Single-cycle multiplication and hardware
division
• Memories
– 256 to 512 Kbytes of Flash memory
– 24 to 32 Kbytes of SRAM
– Flexible static memory controller with 4
Chip Selects. Supports SRAM, PSRAM
and NOR memories
– LCD parallel interface, 8080/6800 modes
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR and programmable voltage
detector (PVD)
– 4-to-24 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• Serial wire debug (SWD) and JTAG I/F
Specifications of STM32F101VFT6
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
STM32F1
|
|
Product
|
STM32F101VFT6
|
|
Core Processor
|
ARM® Cortex®-M3
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
24MHz
|
|
Connectivity
|
I²C, IrDA, LINbus, SPI, UART/USART
|
|
Peripherals
|
DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
|
|
Number of I/O
|
80
|
|
Program Memory Size
|
|
|
Program Memory Type
|
FLASH
|
|
EEPROM Size
|
-
|
|
RAM Size
|
24K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2V ~ 3.6V
|
|
Data Converters
|
A/D 16x12b; D/A 2x12b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
100-LQFP
|
|
Supplier Device Package
|
100-LQFP (14x14)
|
|
Base Product Number
|
STM32F100
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
