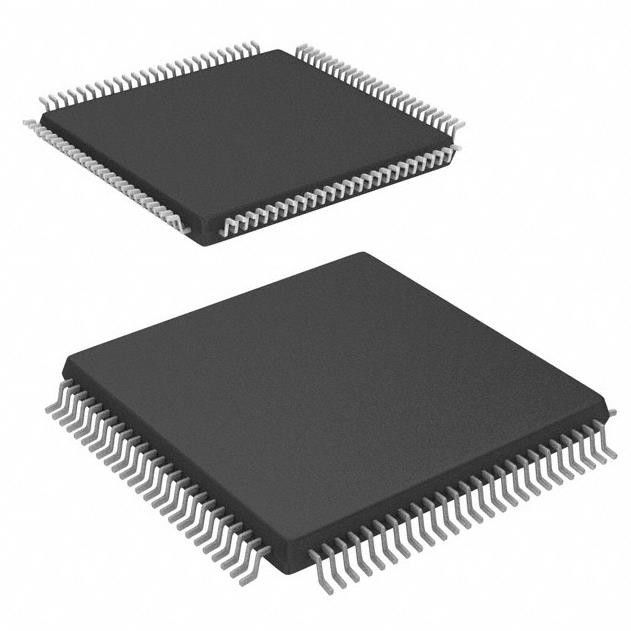

XCR3128XL-10VQG100C Wireless RF Module IC CPLD 128MC 9.1NS 100VQFP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | XCR3128XL-10VQG100C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | XCR3128XL-10VQG100C | Delay Time Tpd(1) Max: | 9.1 Ns |
|---|---|---|---|
| Voltage Supply - Internal: | 3V ~ 3.6V | Number Of Logic Elements/Blocks: | 8 |
| Number Of Macrocells: | 128 | Number Of Gates: | 3000 |
| Number Of I/O: | 84 | Operating Temperature: | 0°C ~ 70°C (TA) |
Product Description
XCR3128XL-10VQG100C Wireless RF Module IC CPLD 128MC 9.1NS 100VQFP
IC CPLD 256MC 6.7NS 100VQFP
Features of XCR3128XL-10VQG100C
Low power 3.3V 128 macrocell CPLD
5.5 ns pin-to-pin logic delays
System frequencies up to 175 MHz
128 macrocells with 3,000 usable gates
Available in small footprint packages
- 144-pin TQFP (108 user I/O pins)
- 144-ball CS BGA(108 user I/O)
- 100-pin VQFP (84 user I/O)
Optimized for 3.3V systems
- Ultra low power operation
- Typical Standby Current of 17 μA at 25°C
- 5V tolerant I/O pins with 3.3V core supply
- Advanced 0.35 micron five layer metal EEPROM process
- Fast Zero PowerTM(FZP)CMOS design technology
- 3.3V PCl electrical specification compatible outputs (no internal clamp diode on any input or I/O)
Specifications of XCR3128XL-10VQG100C
|
Mfr
|
AMD
|
|
Series
|
CoolRunner XPLA3
|
| Package | Tray |
|
Product Status
|
Active
|
|
Digi-Key Programmable
|
Verified
|
|
Programmable Type
|
In System Programmable (min 1K program/erase cycles)
|
|
Delay Time tpd(1) Max
|
9.1 ns
|
|
Voltage Supply - Internal
|
3V ~ 3.6V
|
|
Number of Logic Elements/Blocks
|
8
|
|
Number of Macrocells
|
128
|
|
Number of Gates
|
3000
|
|
Number of I/O
|
84
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
100-TQFP
|
|
Supplier Device Package
|
100-VQFP (14x14)
|
|
Base Product Number
|
XCR3128
|
Applications of XCR3128XL-10VQG100C
• Automotive camera module
• Automotive infotainment
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
