TS3702IDT Comparator General Purpose CMOS, Push-Pull 8-SOIC 20mA
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TS3702IDT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | TS3702IDT | Output Type: | CMOS, Push-Pull |
|---|---|---|---|
| Number Of Elements: | 2 | Voltage - Supply, Single/Dual: | (±) 2.7V ~ 16V, ±1.35V ~ 8V |
| Voltage - Input Offset (Max): | 5mV @ 10V | Current - Input Bias (Max): | 1pA @ 5V |
| Current - Output (Typ): | 20mA | Current - Quiescent (Max): | 25µA |
Product Description

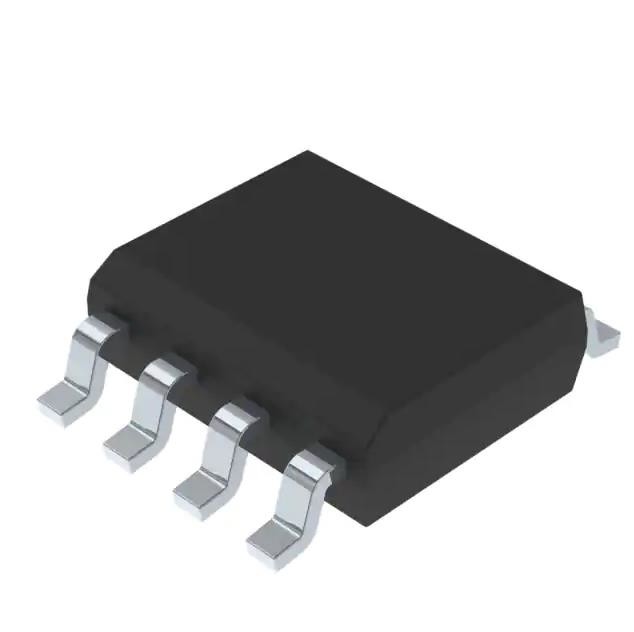

TS3702IDT Comparator General Purpose CMOS, Push-Pull 8-SOIC 20mA
The TS3702 is a micropower CMOS dual voltage comparator with extremely low consumption of
9μA typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage allows
power and space saving by eliminating the external pull-up resistor required by usual opencollector output comparators.
Features of TS3702IDT
■ Push-pull CMOS output (no external pull-up resistor required)
■ Extremely low supply current: 9μA typ / comparator
■ Wide single supply range: 2.7V to 16V or dual supplies (±1.35V to ±8V)
■ Extremely low input bias current: 1pA typ
■ Extremely low input offset currents: 1pA typ
■ Input common-mode voltage range includes GND
■ High input impedance: 1012Ω typ
■ Fast response time: 2μs typ for 5mV overdrive
■ Pin-to-pin and functionally compatible with bipolar LM393
Specifications of TS3702IDT
|
Product
|
TS3702IDT
|
|
Type
|
General Purpose
|
|
Number of Elements
|
2
|
|
Output Type
|
CMOS, Push-Pull
|
|
Voltage - Supply, Single/Dual (±)
|
2.7V ~ 16V, ±1.35V ~ 8V
|
|
Voltage - Input Offset (Max)
|
5mV @ 10V
|
|
Current - Input Bias (Max)
|
1pA @ 5V
|
|
Current - Output (Typ)
|
20mA
|
|
Current - Quiescent (Max)
|
25µA
|
|
CMRR, PSRR (Typ)
|
82dB CMRR
|
|
Propagation Delay (Max)
|
-
|
|
Hysteresis
|
-
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
TS3702
|
Applications of TS3702IDT
• Automotive camera module
• Automotive infotainment
• Automotive cluster
• Automotive sensor fusion
