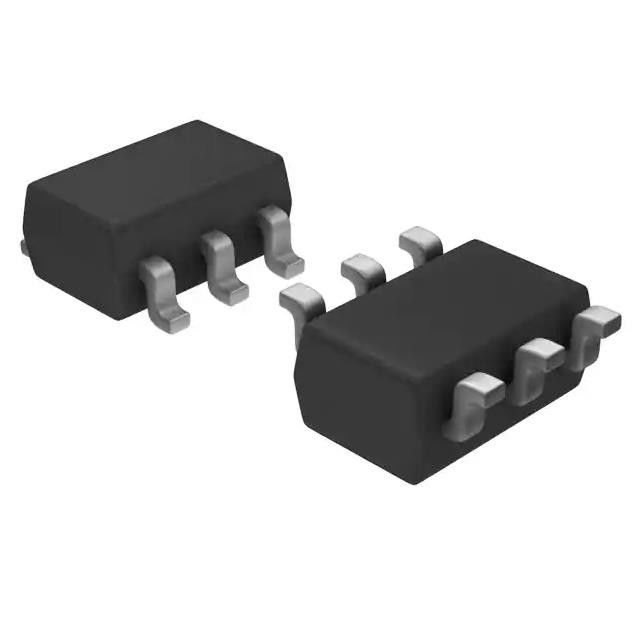

TLV3501AIDBVR Integrated Circuit Chip CMOS Push-Pull TTL SOT-23-6
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TLV3501AIDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | TLV3501AIDBVR | Number Of Elements: | 1 |
|---|---|---|---|
| Output Type: | CMOS, Push-Pull, Rail-to-Rail, TTL | Voltage - Supply, Single/Dual (±): | 2.7V ~ 5.5V, ±1.35V ~ 2.75V |
| Voltage - Input Offset (Max): | 6.5mV @ 5.5V | Current - Input Bias (Max): | 10pA @ 5.5V |
| Current - Quiescent (Max): | 5mA | Propagation Delay (Max): | 10ns |
Product Description
TLV3501AIDBVR Integrated Circuit Chip CMOS Push-Pull TTL SOT-23-6
Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail, TTL SOT-23-6
The TLV350x family of push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input commonmode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic. Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in 6-pin SOT-23 and 8-pin SO packages. The dual (TLV3502) comes in the 8-pin SOT-23 and 8-pin SO packages.
Features of TLV3501AIDBVR
• High Speed: 4.5 ns
• Rail-to-Rail I/O
• Supply Voltage: 2.7 V to 5.5 V
• Push-Pull CMOS Output Stage
• Shutdown (TLV3501 Only)
• Micro Packages: 6-Pin SOT-23 (Single), 8-Pin SOT-23 (Dual)
• Low Supply Current: 3.2 mA
Specifications of TLV3501AIDBVR
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
Active
|
|
Type
|
TLV3501AIDBVR
|
|
Number of Elements
|
1
|
|
Output Type
|
CMOS, Push-Pull, Rail-to-Rail, TTL
|
|
Voltage - Supply, Single/Dual (±)
|
2.7V ~ 5.5V, ±1.35V ~ 2.75V
|
|
Voltage - Input Offset (Max)
|
6.5mV @ 5.5V
|
|
Current - Input Bias (Max)
|
10pA @ 5.5V
|
|
Current - Output (Typ)
|
-
|
|
Current - Quiescent (Max)
|
5mA
|
|
CMRR, PSRR (Typ)
|
70dB CMRR, 100dB PSRR
|
|
Propagation Delay (Max)
|
10ns
|
|
Hysteresis
|
6mV
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Package / Case
|
SOT-23-6
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23-6
|
|
Base Product Number
|
TLV3501
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of TLV3501AIDBVR
• Automatic Test Equipment
• Wireless Base Stations
• Threshold Detectors
• Zero-Crossing Detectors
• Window Comparators
