| Part No: | TLV2371MDBVREP | Internal Switch(s): | No |
|---|---|---|---|
| Number Of Outputs: | 24 | Voltage - Supply (Min): | 3V |
| Voltage - Supply (Max): | 5.5V | Voltage - Output: | 8V |
| Current - Output / Channel: | 50mA | Frequency: | 4MHz, 8MHz |
Product Description

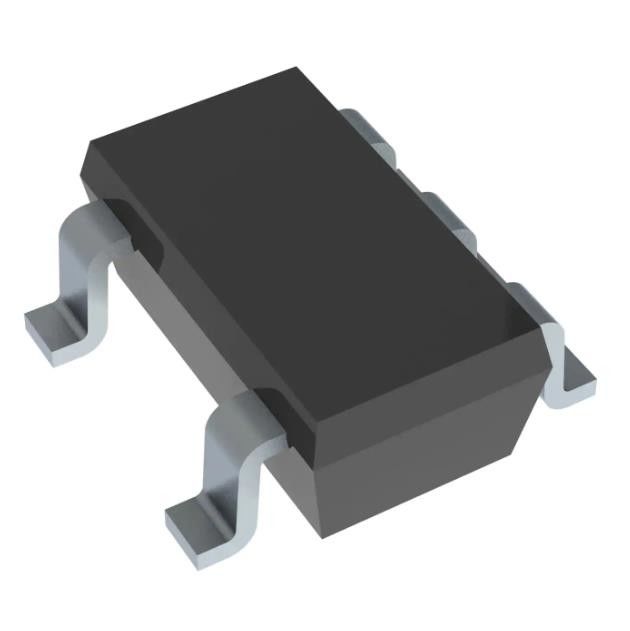

TLV2371MDBVREP Wireless RF Module Chip 1 Circuit Rail-to-Rail SOT-23-5
Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
The TLV237x single supply operational amplifiers provide rail-to-rail input and output capability. The TLV237x takes the minimum operating supply voltage down to 2.7 V over the extended automotive temperature range while adding the rail-to-rail output swing feature. The TLV237x also provides 3-MHz bandwidth from only 550 µA. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from
(±8 V supplies down to ±1.35 V) a variety of rechargeable cells.
Features of TLV2371MDBVREP
Controlled Baseline
− One Assembly/Test Site, One Fabrication Site
Extended Temperature Performance of −55°C to 125°C
Enhanced Diminishing Manufacturing Sources (DMS) Support
Enhanced Product-Change Notification
Qualification Pedigree†
Rail-To-Rail Input/Output
Wide Bandwidth . . . 3 MHz
High Slew Rate . . . 2.4 V/µs
Supply Voltage Range . . . 2.7 V to 16 V
Supply Current . . . 550 µA/Channel
Input Noise Voltage . . . 39 nV/√Hz
Input Bias Current . . . 1 pA
Specified Temperature Range −55°C to 125°C
Ultrasmall Packaging
− 5-Pin SOT-23 (TLV2371)
− 8-Pin MSOP (TLV2372)
Specifications of TLV2371MDBVREP
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
|
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product
|
TLV2371MDBVREP
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
1
|
|
Output Type
|
Rail-to-Rail
|
|
Slew Rate
|
2.1V/µs
|
|
Gain Bandwidth Product
|
3 MHz
|
|
Current - Input Bias
|
1 pA
|
|
Voltage - Input Offset
|
2 mV
|
|
Current - Supply
|
750µA
|
|
Current - Output / Channel
|
16 mA
|
|
Voltage - Supply Span (Min)
|
2.7 V
|
|
Voltage - Supply Span (Max)
|
16 V
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
TLV2371
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
APPLICATIONS of TLV2371MDBVREP
• Automotive Cluster
• Automotive Local Dimming Display
• Automotive Faceplate
• Automotive HVAC Control Panel
• Automotive Center Stack Display
• Automotive Interior and RGB Ambient Lighting
• Automotive Shift-by-Wire and Gear Shifter
