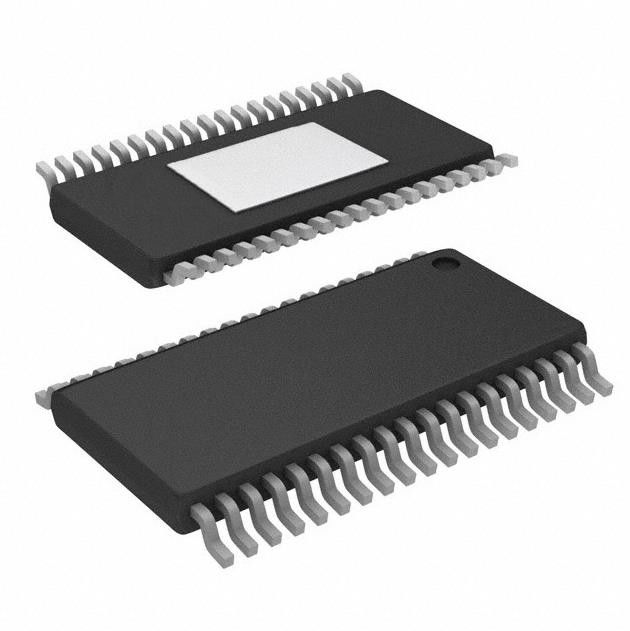

TLC6C5724QDAPRQ1 Wireless RF Module LED Driver 24 50mA 38-HTSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | TLC6C5724QDAPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | TLC6C5724QDAPRQ1 | Internal Switch(s): | No |
|---|---|---|---|
| Number Of Outputs: | 24 | Voltage - Supply (Min): | 3V |
| Voltage - Supply (Max): | 5.5V | Voltage - Output: | 8V |
| Current - Output / Channel: | 50mA | Frequency: | 4MHz, 8MHz |
Product Description
TLC6C5724QDAPRQ1 Wireless RF Module LED Driver 24 50mA 38-HTSSOP
Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
There are automotive applications for indicators and for LCD local-dimming backlighting. For these applications, more persons think multi-channel
constant-current LED drivers are necessary. The requirement is to get the same intensity and color temperature of LEDs. For system-level safety, it is necessary that the LED drivers can sense faults.
Features of TLC6C5724QDAPRQ1
• AEC-Q100 Qualified for Automotive Applications
– Device Temperature Grade 1: –40°C to 125°C,TA
• 24 Constant-Current-Sink Output Channels
– 50-mA Maximum Output Current
– 8-V Maximum Output Voltage
– 3 Output Groups: OUTRn, OUTGn, OUTBn
• Output Current Adjustment
– 7-Bit Dot Correction for Each Channel
– 8-Bit Intensity Control for Each Group
• Integrated PWM Grayscale Generator
– PWM Dimming for Each Individual Channel
– Adjustable Global Grayscale Mode: 12-Bit, 10-Bit, 8-Bit
• Protection and Diagnostics
– LED-Open Detection, LED-Short Detection,Output Short-to-GND Detection
– Adjacent-Pin Short Detection
– Pre-Thermal Warning, Thermal Shutdown
– IREF Resistor Open- and Short-Detection and
-Protection
– Negate Bit Toggle for GCLK Error Detect and
LOD_LSD Register Error Check
– LOD_LSD Circuit Self-Test
Specifications of TLC6C5724QDAPRQ1
|
Mfr
|
Texas Instruments
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
| Package | Tape & Reel (TR) |
|
Type
|
Linear
|
|
Topology
|
-
|
|
Internal Switch(s)
|
No
|
|
Number of Outputs
|
24
|
|
Voltage - Supply (Min)
|
3V
|
|
Voltage - Supply (Max)
|
5.5V
|
|
Voltage - Output
|
8V
|
|
Current - Output / Channel
|
50mA
|
|
Frequency
|
4MHz, 8MHz
|
|
Dimming
|
PWM
|
|
Applications
|
Automotive, Backlight, Lighting
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
38-PowerTSSOP (0.240", 6.10mm Width)
|
|
Supplier Device Package
|
38-HTSSOP
|
|
Base Product Number
|
TLC6C5724
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of TLC6C5724QDAPRQ1
• Automotive Cluster
• Automotive Local Dimming Display
• Automotive Faceplate
• Automotive HVAC Control Panel
• Automotive Center Stack Display
• Automotive Interior and RGB Ambient Lighting
• Automotive Shift-by-Wire and Gear Shifter
