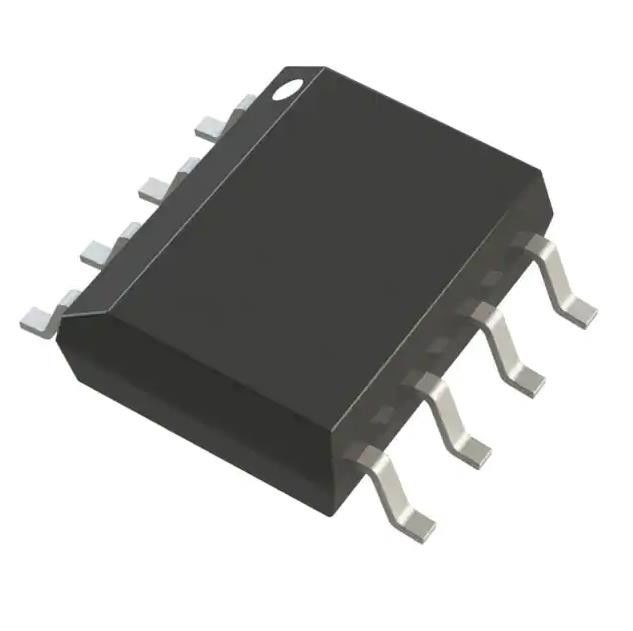

SSM2211SZ-REEL Integrated Circuit Chip IC 1-Channel (Mono) Class AB 8-SOIC
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SSM2211SZ-REEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SSM2211SZ-REEL | Type: | Class AB |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 1.5W X 1 @ 4Ohm |
| Voltage - Supply: | 2.7V ~ 5.5V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 8-SOIC |
Product Description
SSM2211SZ-REEL Integrated Circuit Chip IC 1-Channel (Mono) Class AB 8-SOIC
Amplifier IC 1-Channel (Mono) Class AB 8-SOIC
The SSM22111 is a high performance audio amplifier that delivers 1 W rms of low distortion audio power into a bridgeconnected 8 Ω speaker load (or 1.5 W rms into a 4 Ω load). The SSM2211 operates over a wide temperature range and is specified for single-supply voltages between 2.7 V and 5.5 V. When operating from batteries, it continues to operate down to 1.75 V. This makes the SSM2211 the best choice for unregulated
applications, such as toys and games.
Features of SSM2211SZ-REEL
1.5 W outputwith THD + N < 1%
Differential bridge-tied load output
Single-supply operation: 2.7 V to 5.5 V
Functions down to 1.75 V
Wide bandwidth: 4 MHz
Highly stable phase margin: >80°
Low distortion: 0.2% THD + N at 1 W output
Excellent power supply rejection
APPLICATIONS
Portable computers
Personal wireless communicators
Hands-free telephones
Speaker phones
Intercoms
Musical toys and talking games
Specifications of SSM2211SZ-REEL
|
Mfr
|
Analog Devices Inc.
|
| Package | Tape & Reel |
|
Series
|
-
|
|
Product
|
SSM2211SZ-REEL
|
|
Type
|
Class AB
|
|
Output Type
|
1-Channel (Mono)
|
|
Max Output Power x Channels @ Load
|
1.5W x 1 @ 4Ohm
|
|
Voltage - Supply
|
2.7V ~ 5.5V
|
|
Features
|
Differential Inputs, Shutdown
|
|
Mounting Type
|
Surface Mount
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Supplier Device Package
|
8-SOIC
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Base Product Number
|
SSM2211
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
APPLICATIONS of SSM2211SZ-REEL
– Isolated power supplies for
– Traction inverter and motor control
– DC/DC converter
– Battery management system (BMS)
– On-board charger (OBC)
