SN75C3221PWR 1/1 Wireless RF Module Transceiver Full RS232 16-TSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN75C3221PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | SN75C3221PWR | Number Of Drivers/Receivers: | 1/1 |
|---|---|---|---|
| Receiver Hysteresis: | 500 MV | Data Rate: | 1Mbps |
| Voltage - Supply: | 3V ~ 5.5V | Operating Temperature: | 0°C ~ 70°C |
| Supplier Device Package: | 16-TSSOP | Type: | Transceiver |
Product Description

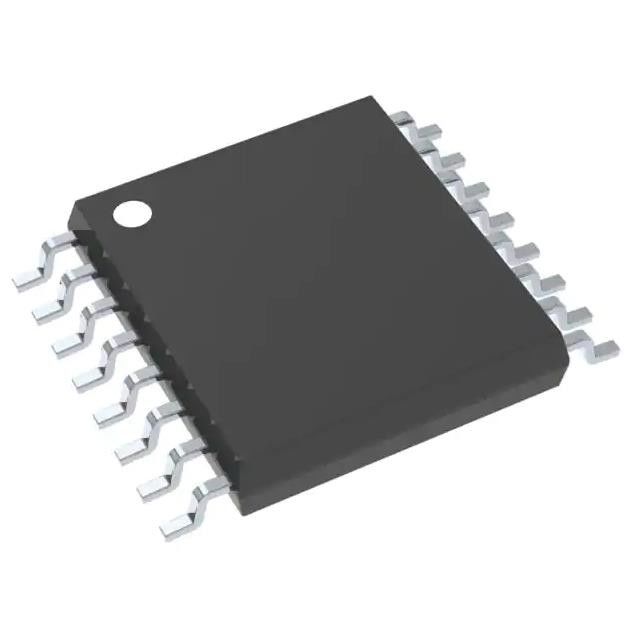

SN75C3221PWR 1/1 Integrated Circuit Chip Transceiver Full RS232 16-TSSOP
1/1 Transceiver Full RS232 16-TSSOP
The SN65C3221 and SN75C3221 consist of one line driver, one line receiver, and a dual chargepump circuit with ±15-kV ESD protection pin to
pin (serial-port connection pins, including GND). These devices providethe electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. These devices operate at data signaling rates up to 1 Mbit/s and a driver output slew rate of 24 V/μs to 150 V/μs.
Features of SN75C3221PWR
• Operate with 3-V to 5.5-V VCC supply
• Operate up to 1 Mbit/s
• Low standby current : 1 μA typical
• External capacitors : 4 x 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• RS-232 bus-pin ESD protection exceeds ±15 kV using human-body model (HBM)
• Auto-powerdown feature automatically disables drivers for power savings
Specifications of SN75C3221PWR
| Product | SN75C3221PWR |
| Package | Tape & Reel |
|
Mfr
|
Texas Instruments
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Type
|
Transceiver
|
|
Protocol
|
RS232
|
|
Number of Drivers/Receivers
|
1/1
|
|
Duplex
|
Full
|
|
Receiver Hysteresis
|
500 mV
|
|
Data Rate
|
1Mbps
|
|
Voltage - Supply
|
3V ~ 5.5V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Base Product Number
|
75C3221
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of SN75C3221PWR
• Industrial PCs
• Wired networking
• Data center and enterprise computing
• Battery-powered systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-held equipment
