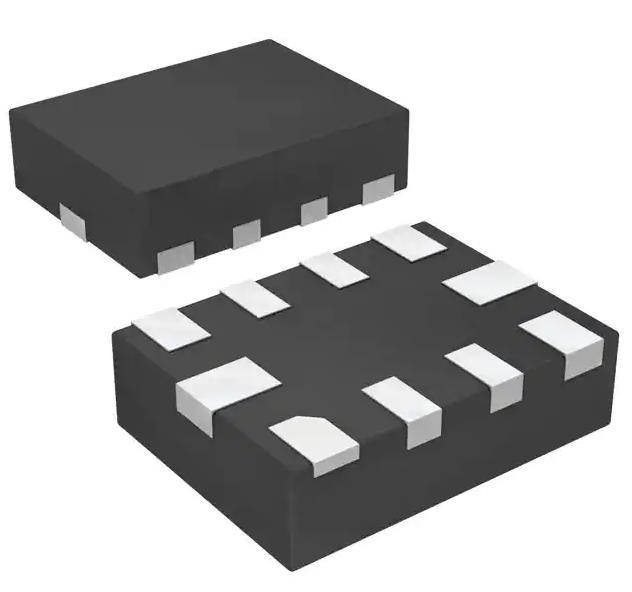

SN65LVDS4RSER 0/1 Receiver LVDS 10-UQFN (2.0x1.5) Integrated Circuits RECEIVER 65LVDS
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | SN65LVDS4RSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 18 | Voltage - Input (Min): | 2.7V |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Operating Temperature: | -40°C ~ 85°C |
| Current - Output / Channel: | 50mA | Supplier Device Package: | 40-VQFN (5x5) |
Product Description
SN65LVDS4RSER 0/1 Receiver LVDS 10-UQFN (2.0x1.5) IC RECEIVER
IC RECEIVER 0/1 10UQFN
Features of SN65LVDS4RSER
• Designed for Signaling Rates up to:
– 500-Mbps Receiver Propagation Delay Times
– 2.1 ns Typical Receive Power Dissipation at 250 MHz
– 40 mW Typical
• Requires External Failsafe
• Differential Input Voltage Threshold Less Than 50 mV
• Can Provide Output Voltage Logic Level (3.3-V LVTTL, 2.5-V LVCMOS, 1.8-V LVCMOS) Based
on External VDD Pin, Thus Eliminating External Level Translation
Product Attributes of SN65LVDS4RSER
|
Product Status
|
Active
|
|
Type
|
Receiver
|
|
Protocol
|
LVDS
|
|
Number of Drivers/Receivers
|
0/1
|
|
Duplex
|
-
|
|
Data Rate
|
500Mbps
|
|
Voltage - Supply
|
1.62V ~ 1.98V, 2.25V ~ 2.75V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
10-UFQFN
|
|
Supplier Device Package
|
10-UQFN (2.0x1.5)
|
|
Base Product Number
|
65LVDS4
|
Environmental & Export Classifications of SN65LVDS4RSER
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Applications of SN65LVDS4RSER
• Clock Distribution
• Wireless Base Stations
• Network Routers
