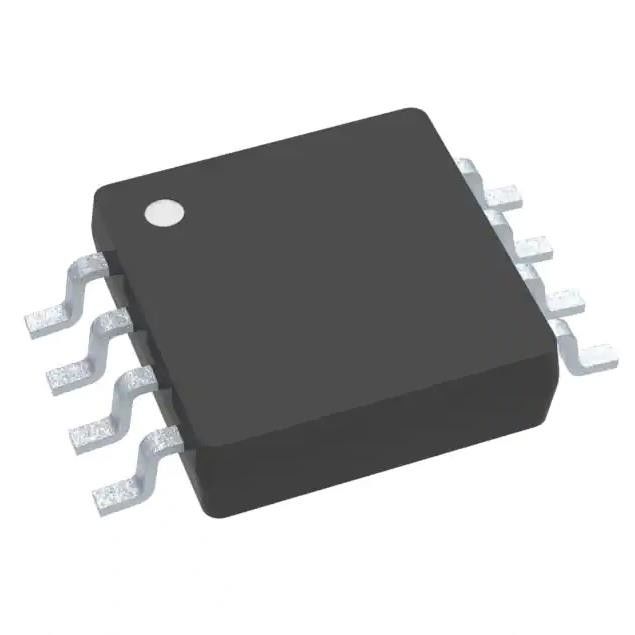

REF5025IDGKR Voltage Reference IC Fixed 2.5V V ±0.05% 10 mA 8-VSSOP
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | REF5025IDGKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Output (Min/Fixed): | 2.5V | Current - Output: | 10 MA |
|---|---|---|---|
| Tolerance: | ±0.05% | Current - Input Bias: | 5 PA |
| Temperature Coefficient: | 3ppm/°C | Noise - 0.1Hz To 10Hz: | 7.5µVpp/V |
| Voltage - Input: | 2.7V ~ 18V | ||
Product Description
REF5025IDGKR Voltage Reference IC Fixed 2.5V V ±0.05% 10 mA 8-VSSOP
Series Voltage Reference IC Fixed 2.5V V ±0.05% 10 mA 8-VSSOP
Features of REF5025IDGKR
FET input: IB = 50 pA Maximum FET input: IB = 50 pA Maximum • Low temperature drift:
– High-grade: 3 ppm/°C (maximum)
– Standard-grade: 8 ppm/°C (maximum)
• High accuracy:
– High-grade: 0.05% (maximum)
– Standard-grade: 0.1% (maximum)
• Low noise: 3 μVPP/V
• Excellent long-term stability:
– 50 ppm/1000 hr (typical) first 1000 hours
(VSSOP)
– 25 ppm/1000 hr (typical) second 2000 hours
(VSSOP)
• High-output current: ±10 mA
• Temperature range: –40°C to 125°C
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Reference
|
|
Mfr
|
T I
|
|
Series
|
-
|
|
Product Status
|
Active
|
|
Reference Type
|
Series
|
|
Output Type
|
Fixed
|
|
Voltage - Output (Min/Fixed)
|
2.5V
|
|
Current - Output
|
10 mA
|
|
Tolerance
|
±0.05%
|
|
Temperature Coefficient
|
3ppm/°C
|
|
Noise - 0.1Hz to 10Hz
|
7.5µVpp/V
|
|
Noise - 10Hz to 10kHz
|
-
|
|
Voltage - Input
|
2.7V ~ 18V
|
|
Current - Supply
|
1.2mA
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
|
|
Supplier Device Package
|
8-VSSOP
|
|
Base Product Number
|
REF5025
|
Applications of REF5025IDGKR
• Precision data acquisition systems
• Semiconductor test equipment
• Industrial process controls
• Medical instrumentation
• Pressure and temperature transmitters
• Lab and field instrumentation
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
