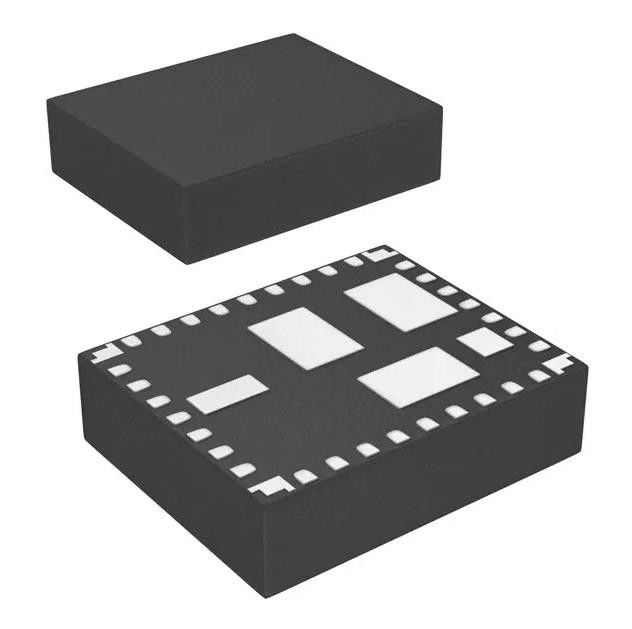

LMZ35003RKGR Non-Isolated PoL Module DC Converter 1 Output 2.5 ~ 15V
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | LMZ35003RKGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Non-Isolated PoL Module | Voltage - Input (Min): | 7V |
|---|---|---|---|
| Voltage - Input (Max): | 50V | Voltage - Output 1: | 2.5 ~ 15V |
| Size / Dimension: | 0.43" L X 0.35" W X 0.11" H (11.0mm X 9.0mm X 2.8mm) | Supplier Device Package: | 41-B1QFN (11x9) |
Product Description
LMZ35003RKGR Non-Isolated PoL Module DC Converter 1 Output 2.5 ~ 15V
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 15V 2.5A 7V - 50V Input
Features of LMZ35003RKGR
Complete Integrated Power Solution Allows
Small Footprint, Low-Profile Design
• Wide Input Voltage Range from 7 V to 50 V
• Output Adjustable from 2.5 V to 15 V
• 65-V Surge Capability
• Efficiencies Up To 96%
• Adjustable Switching Frequency
(300 kHz to 1 MHz)
• Synchronizes to an External Clock
• Adjustable Slow-Start
• Output Voltage Sequencing and Tracking
• Power Good Output
• Programmable Undervoltage Lockout (UVLO)
• Output Overcurrent Protection
• Over Temperature Protection
• Pre-bias Output Start-up
• Operating Temperature Range: –40°C to 85°C
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Power Supplies - Board Mount
DC DC Converters
|
|
Mfr
|
T Instruments
|
|
Series
|
SIMPLE SWITCHER®
|
|
Product Status
|
Active
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
7V
|
|
Voltage - Input (Max)
|
50V
|
|
Voltage - Output 1
|
2.5 ~ 15V
|
|
Voltage - Output 2
|
-
|
|
Voltage - Output 3
|
-
|
|
Current - Output (Max)
|
2.5A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
OCP, OTP, UVLO
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
93%
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
41-BQFN Module
|
|
Size / Dimension
|
0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm)
|
|
Supplier Device Package
|
41-B1QFN (11x9)
|
|
Control Features
|
Enable, Active High
|
|
Base Product Number
|
LMZ35003
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
Description of LMZ35003RKGR
The LMZ35003 power module is an easy-to-use integrated power solution that combines a 2.5-A
DC/DC converter with a shielded inductor and passives into a low profile, QFN package. This total
power solution allows as few as five external components and eliminates the loop compensation
and magnetics part selection process. The small 9 mm × 11 mm × 2.8 mm, QFN package is
easy to solder onto a printed circuit board and allows a compact point-of-load design with greater than 90%
efficiency and excellent power dissipation capability. The LMZ35003 offers the flexibility and the featureset of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and
reliable power solution compatible with standard QFN mounting and testing techniques.
